Description

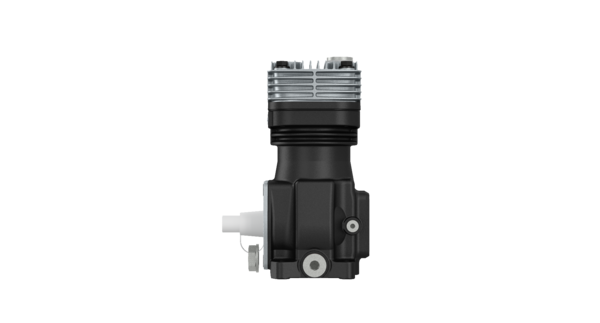

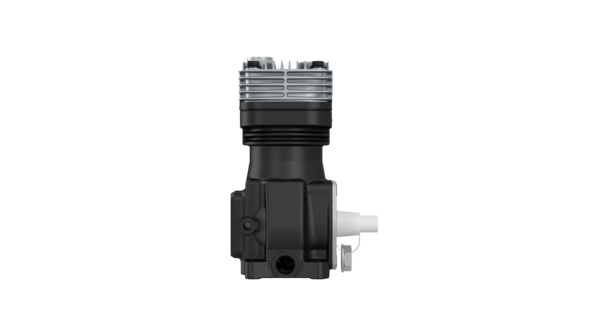

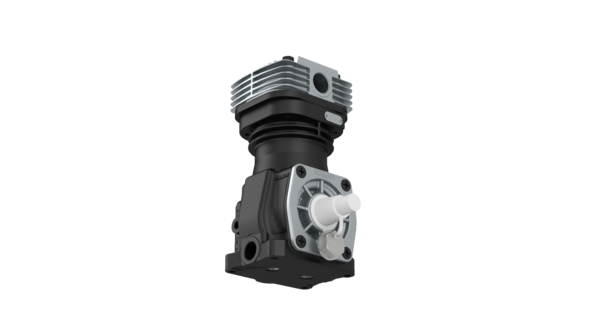

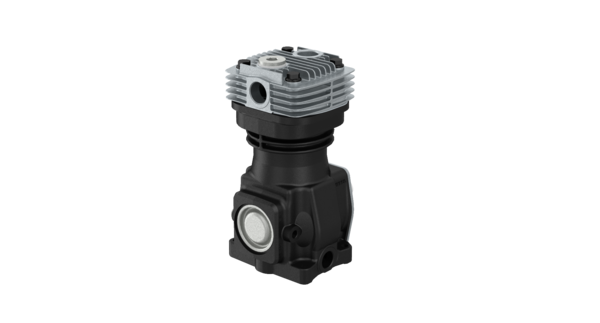

Compressor (Single Cylinder)
Part Number: 4111405010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 15.2483 |
| Comments | Port flange with straight facing |
| Cooling | Air |
| Crankshaft thread | Ø 25 mm |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Mounting | Foot mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 75.0 mm |
| Piston stroke | 24 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | M10 x 1 |
| Port thread 8.2 | M22 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 106 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | High pressure using unloader |
| GTIN | 04057875155102 |
| Size (mm x mm x mm) | 231 x 205 x 322 |
| UPC | 193133234319 |
| Weight (kg) | 8.968 |
| Weight (lb) | 19.771 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505908 |
| FENDT | G246880020010 |
