Description

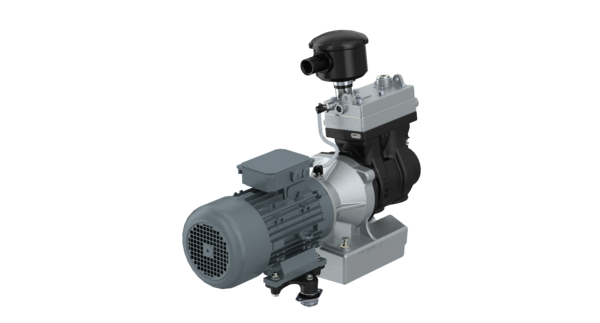

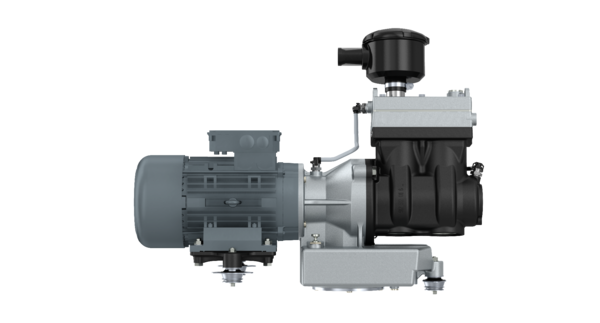

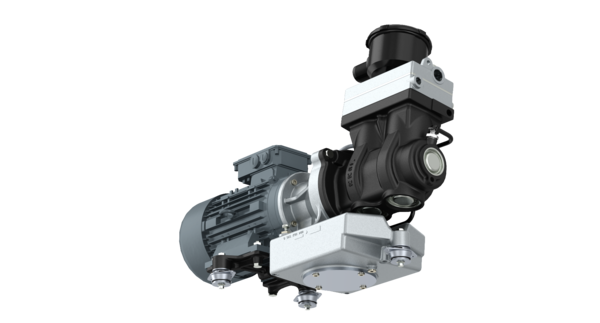

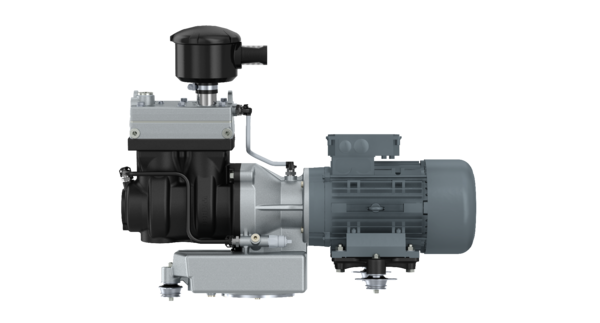

Compressor, E-driven
Part Number: 9135000030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 128.8 |
| Comments | Stand alone compressor |
| Cooling | Water |
| Lubrication | Internal lubrication system with replenishment |
| Max. operating pressure | 12.5 bar |
| Mounting | Stand alone |
| Operating speed | 2000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 42 mm |
| Port thread 0 | Ø 39 mm |
| Port thread 2 | M26 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Port thread 9.1 | M16 x 1.5 |
| Port thread 9.2 | M16 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 476 cm3 |
| Technical specification | OE specification |
| Type | Twin cylinder with E-Motor |
| GTIN | 04057875329329 |
| Size (mm x mm x mm) | 719 x 560 x 320 |
| UPC | 193133346340 |
| Weight (kg) | 63.2 |
| Weight (lb) | 139.3 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HYUNDAI | 59550 8KEV0 |
