Description

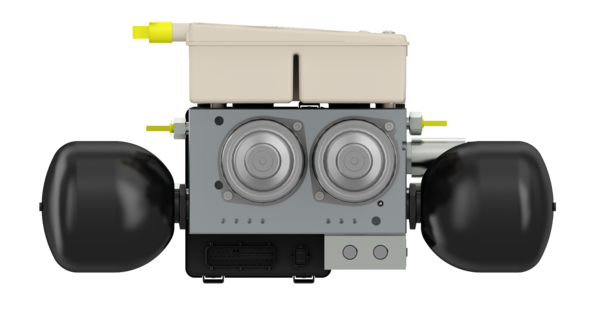

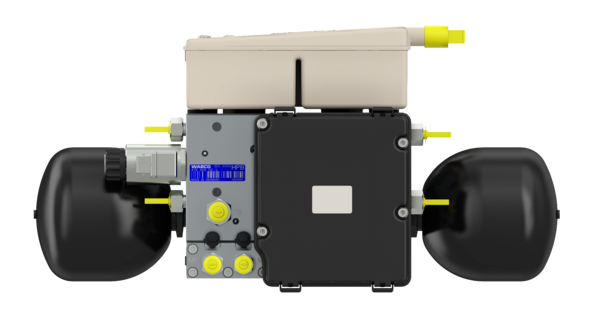

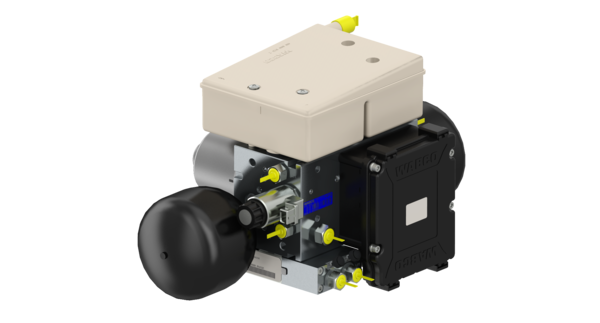

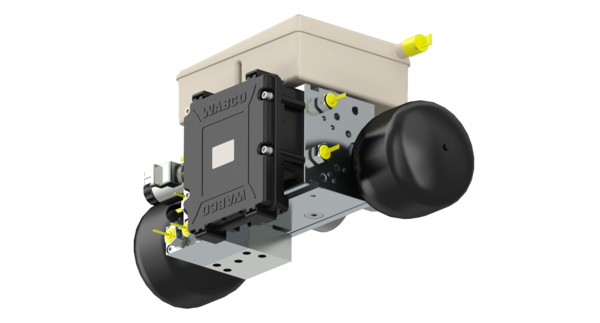

Compact Unit
Part Number: 4784081350
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 23.5104 |
| Capacity | 0.75 L |
| Max. operating pressure | 160.0 bar |
| Medium | Brake fluid DOT 3, DOT 4, DOT 5.1 – FMVSS 116 |
| Port thread FL | 7/16″ – 24 UNS – 2B |
| Port thread FR | 1/2″ – 20 UNF – 2B |
| Port thread MF | 1/2″ – 20 UNF – 2B |
| Port thread MR | 7/16″ – 24 UNS – 2B |
| Port thread RL | 1/2″ – 20 UNF – 2B |
| Port thread RR | 7/16″ – 24 UNS – 2B |
| Product category | Device |
| Protection class | IP66 |
| Technical specification | OE specification |
| Temperature range | -40°C to +85°C |
| Voltage | 12 V |
| GTIN | 04057875228103 |
| Size (mm x mm x mm) | 474 x 200 x 248 |
| UPC | 193133407188 |
| Weight (kg) | 18.24 |
| Weight (lb) | 40.2123 |
