Description

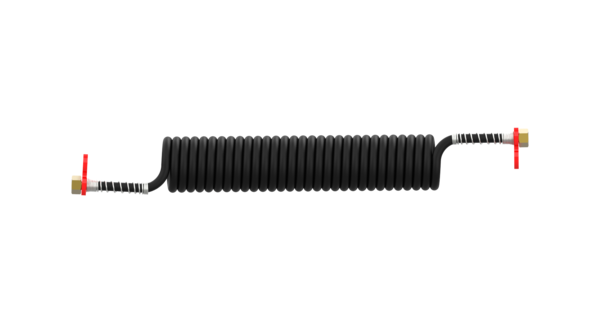

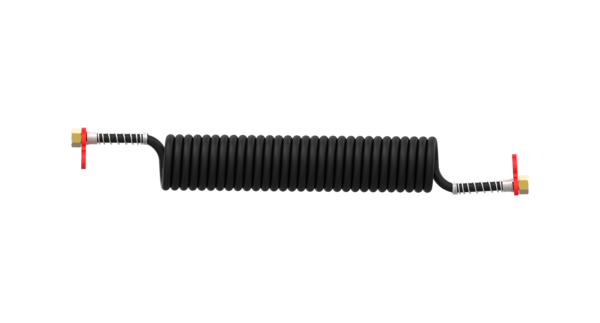

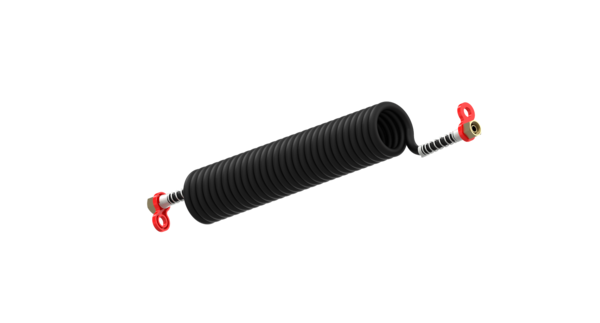

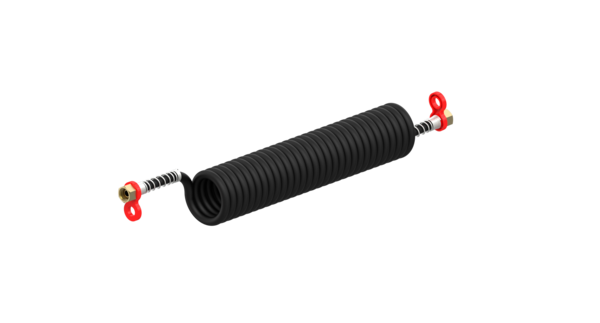

Coiled Tube
Part Number: PRO7110620
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Body material | Multilayer (PA12/PA6/PA12) |
| Calculated Volume (dm³) | 7.67 |
| Color kink protection | Red |
| Fittings | M18 × 1.5 female / M18 × 1.5 female |
| Inner diameter | 9.0 mm |
| Length | 4000.0 mm |
| Max. operating pressure | 10.0 bar |
| Norm | ISO 7375 / ISO 7628 |
| Outer diameter | 12.0 mm |
| Port thread 1 | Female M18 x 1.5 |
| Port thread 2 | Female M18 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Size | 12 x 1.5 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | Ø 9.0 x 1.5 mm |
| Version | With fittings |
| Working length | 4 m |
| GTIN | 04057877004507 |
| Size (mm x mm x mm) | 580 x 115 x 115 |
| UPC | 193134004287 |
| Weight (kg) | 0.508 |
| Weight (lb) | 1.12 |
