Description

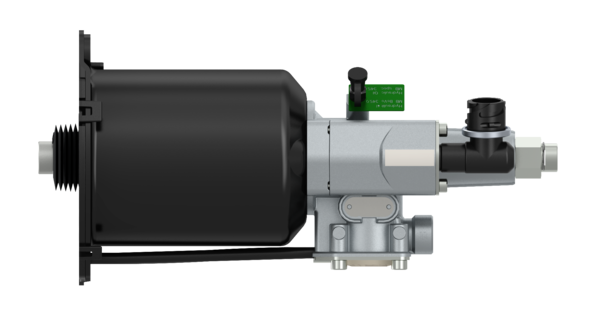

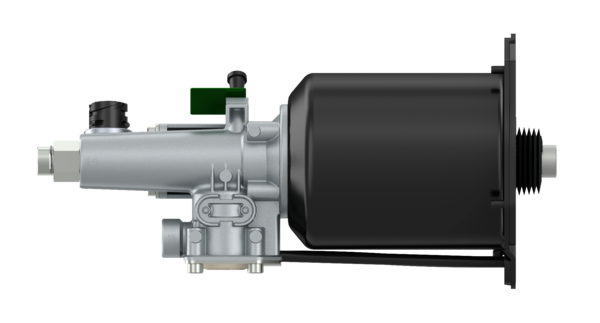

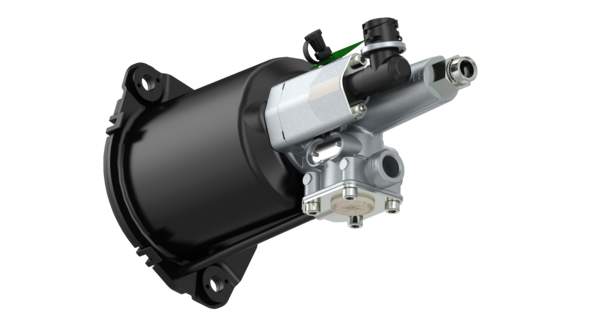

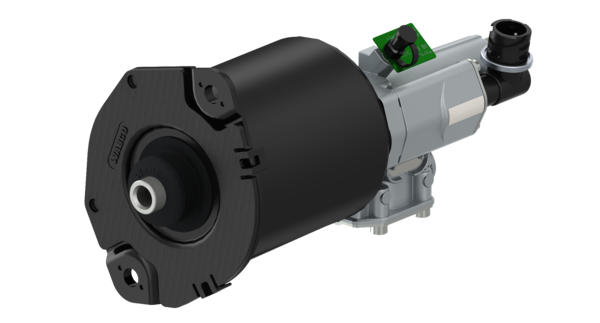

Clutch Servo NGA
Part Number: 9700520020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 9.161 |
| Distance between holes | 126 mm |
| Electrical connection | Bayonet DIN 72585 – A1 |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 317 mm |
| Max. operating pressure | 10.0 bar |
| Medium | MB-SERVO 345.0 |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1-4 | M 16 x 1.5 |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | M8 x 1 |
| Product category | Device |
| Push-rod thread | Hole Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +130°C |
| Voltage | 12 V |
| GTIN | 04057875301066 |
| Size (mm x mm x mm) | 317 x 170 x 170 |
| UPC | 193133374541 |
| Weight (kg) | 3.2 |
| Weight (lb) | 7.055 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | A0002543347 |
