Description

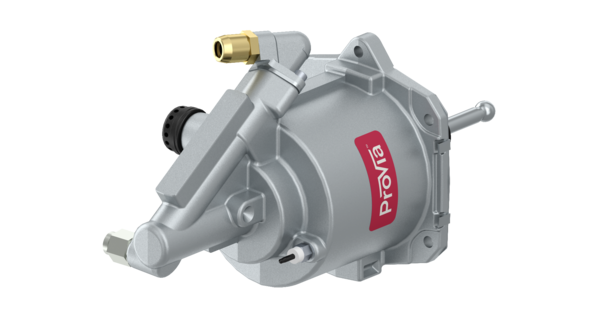

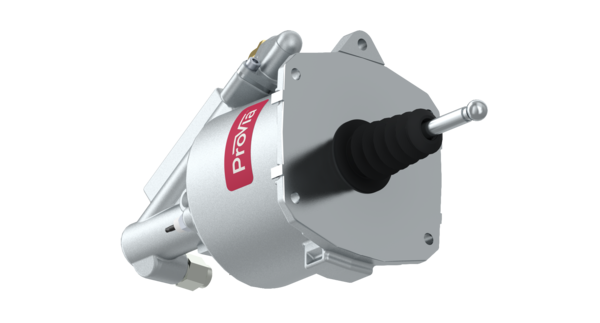

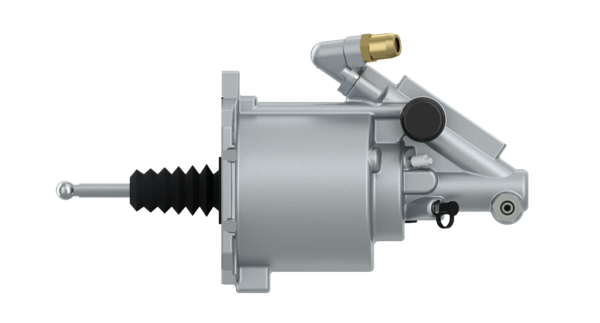

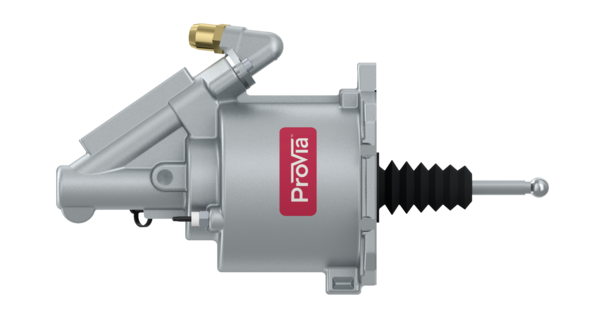

Clutch Servo
Part Number: PRO4110310
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 12.17 |
| Distance between holes | 96±0.5 mm, 128±0.5 mm |
| Electrical connection | No electrical connection |
| Fluid type | Brake fluid |
| Length | 386 ± 6 |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x Ø 9 ± 0.3 |
| Mounting bolt thread | 4x Ø9 ± 0.3 |
| Port thread 1-4 | Ø9.1 + 0.05 |
| Port thread 11 | Ø10 + 0.3 |
| Port thread 14 | M14 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | available with cap |
| Ports | M14 x 1.5-6H |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-rod length | Ball SR 8 mm |
| Size | 386 x 206 x 153 mm |
| Stroke | 85.0 mm |
| Technical specification | AM specification |
| Temperature range | -30˚C to +80˚C |
| Voltage | No electrical connection |
| Wear measurement | Mechanical wear indicator |
| GTIN | 04057877023577 |
| Size (mm x mm x mm) | 386 x 206 x 153 |
| UPC | 193134008056 |
| Weight | 3.38 |
| Weight (kg) | 3.38 |
| Weight (lb) | 7.452 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 1927825 |
| SCANIA | 1523399 |
| SCANIA | 1784480 |
| SCANIA | 2555088 |
