Description

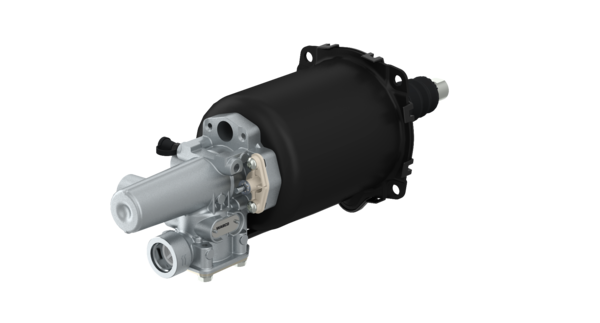

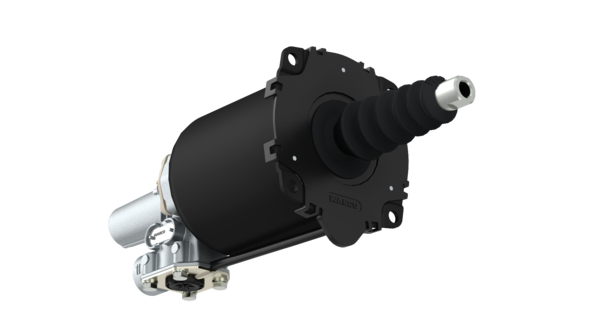

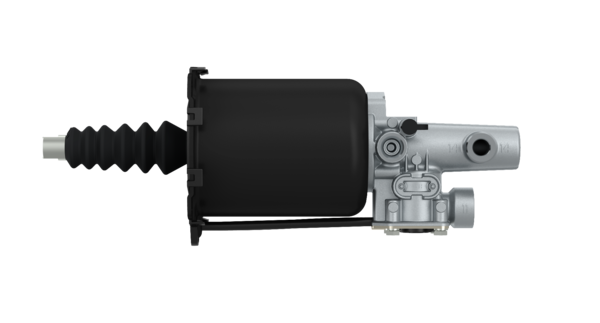

Clutch Servo
Part Number: 9700514570
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.14 |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 372 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | M12 x 1.25 |
| Stroke | 86.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875300335 |
| Size (mm x mm x mm) | 265 x 126 x 124 |
| UPC | 193133374015 |
| Weight (kg) | 2.772 |
| Weight (lb) | 6.1112 |
