Description

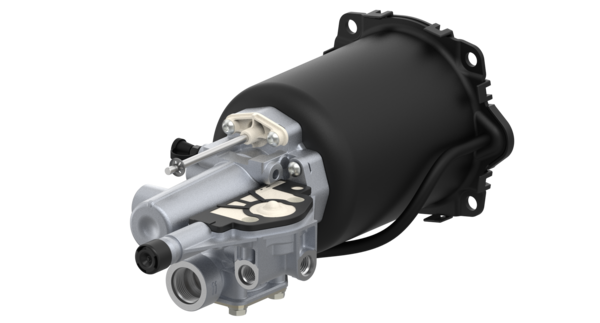

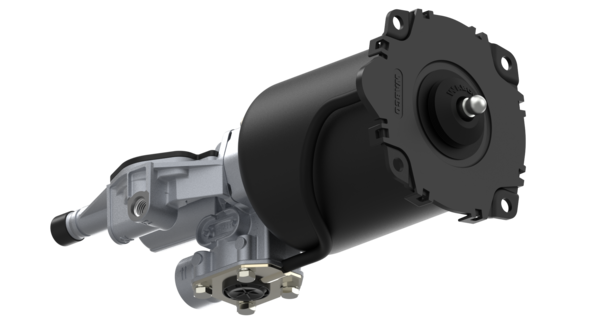

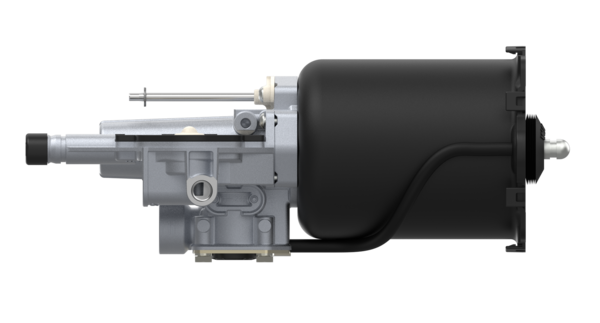

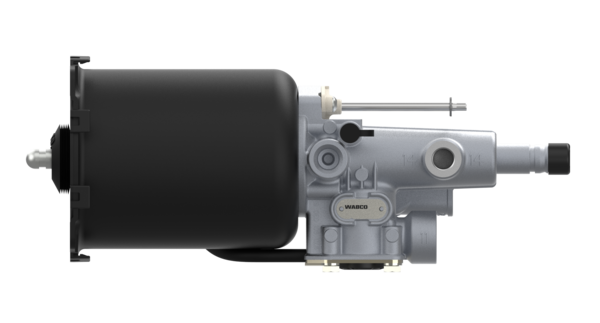

Clutch Servo
Part Number: 9700514210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.7 |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 326 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 12 | M12 x 1.5 JED – 464 |
| Port thread 22 | M12 x 1.5 JED – 464 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 22.0 mm |
| Stroke | 31.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +110°C |
| GTIN | 04057875300151 |
| Size (mm x mm x mm) | 440 x 125 x 140 |
| UPC | 193133416876 |
| Weight (kg) | 3.022 |
| Weight (lb) | 6.6624 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1917418 |
