Description

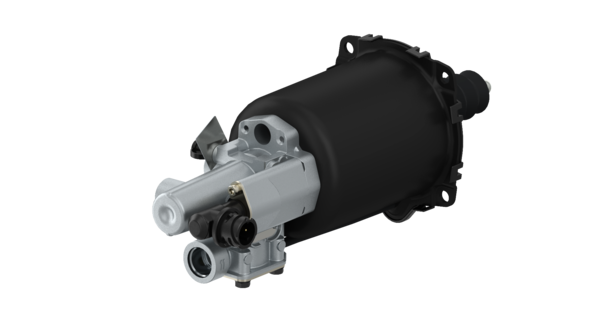

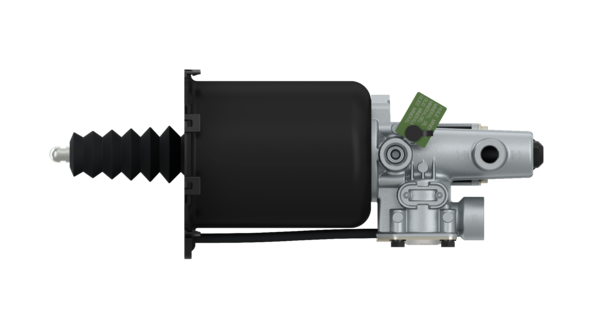

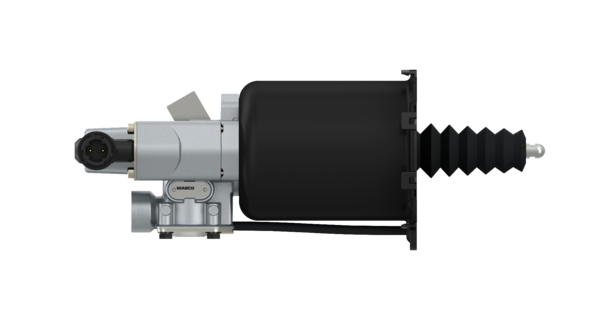

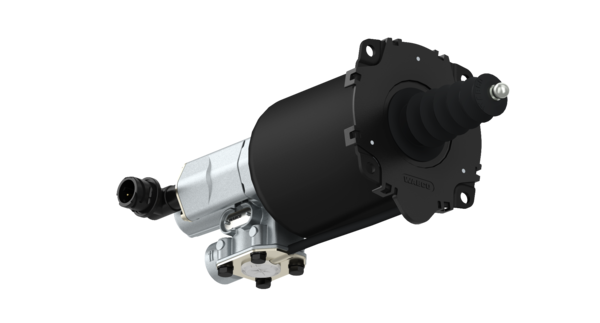

Clutch Servo
Part Number: 9700514650
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.7951 |
| Distance between holes | 130 mm |
| Electrical connection | Bayonet DIN 72585 – A1 – 2.1 – SN K2 |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 364 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Mineral oil |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 65.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| GTIN | 04057875300472 |
| Size (mm x mm x mm) | 284 x 134 x 126 |
| UPC | 193133374053 |
| Weight (kg) | 2.819 |
| Weight (lb) | 6.2148 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81307256115 |
| MAN | 81307256112 |
| NEOPLAN | 81307256115 |
