Description

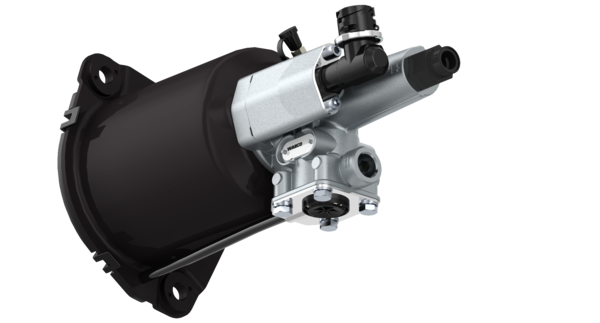

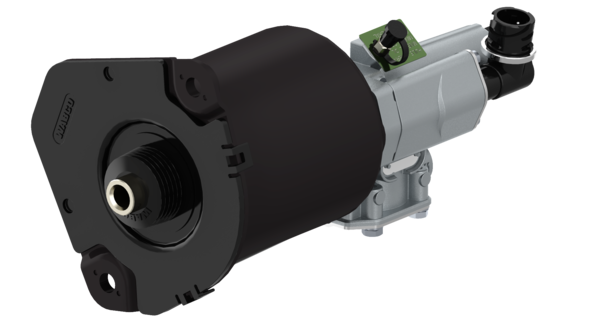

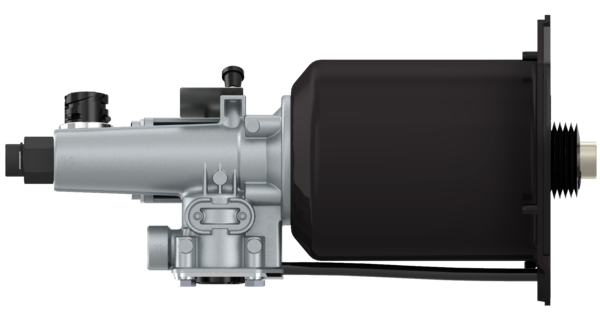

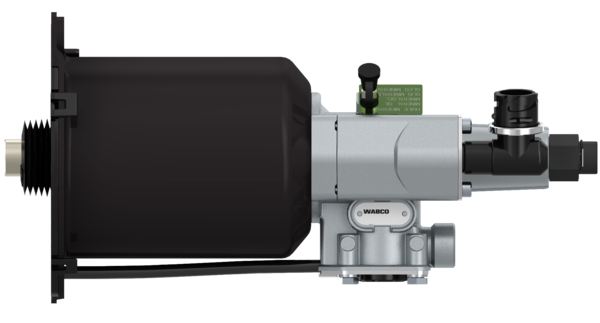

Clutch Servo
Part Number: 9700514410
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 8.2191 |
| Comments | DC SM1 |
| Distance between holes | 110 mm |
| Electrical connection | Bayonet DIN 72585 – A1 |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 290 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Mineral oil |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1-4 | M14 x 1.5 ( B ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Hole Ø12.1 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -20°C to +80°C |
| Voltage | 12 V |
| GTIN | 7895851051935 |
| Size (mm x mm x mm) | 405 x 139 x 146 |
| UPC | 193133449706 |
| Weight (kg) | 3.145 |
| Weight (lb) | 6.9335 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1527600 |
| KENWORTH | S9700514410 |
| MAN | 81307256104 |
| MERCEDES-BENZ | 0002540447 |
| MERCEDES-BENZ | A0002540447 |
| MERCEDES-BENZ | A0002540447Z001 |
| MERCEDES-BENZ | A0002540447Z002 |
| MERCEDES-BENZ | 0002540447Z002 |
| MERCEDES-BENZ | B954237513401 |
| MERITOR | S9700514410 |
| NEOPLAN | 81307256104 |
| PACCAR | 1527600 |
| PETERBILT | S9700514410 |
| SCANIA | 1935609 |
