Description

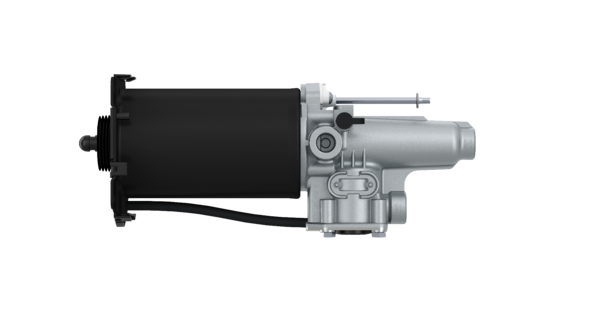

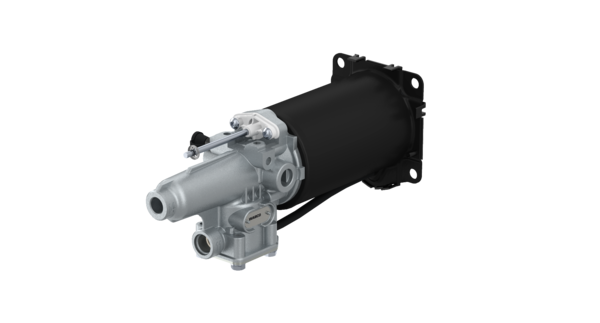

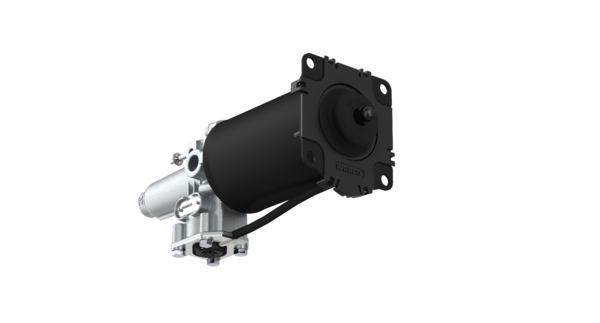

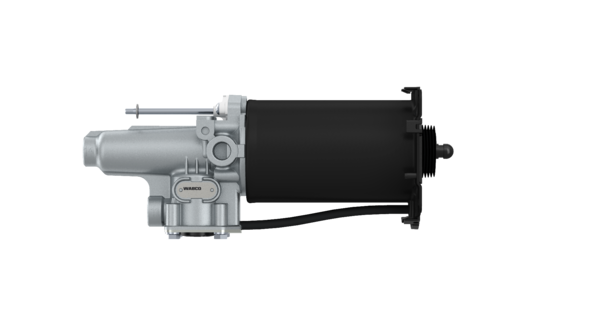

Clutch Servo
Part Number: 9700514350
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.792 |
| Comments | ZF |
| Distance between holes | 110 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 373 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( A ) |
| Port thread 11 | M16 x 1.5 JED – 464 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -30°C to +100°C |
| GTIN | 7895851058989 |
| Size (mm x mm x mm) | 379 x 116 x 109 |
| UPC | 193133373865 |
| Weight (kg) | 1.978 |
| Weight (lb) | 4.3607 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HINO | S31A0E0B00 |
| IVECO | 5801275320 |
| KING LONG | 16L0204010 |
| KING LONG | 16L02-04010 |
| OTOKAR | 13F1023250AA |
| YUTONG | 160400204 |
| YUTONG | 1604-00204 |
| ZHONGTONG | 1609-10-00016 |
