Description

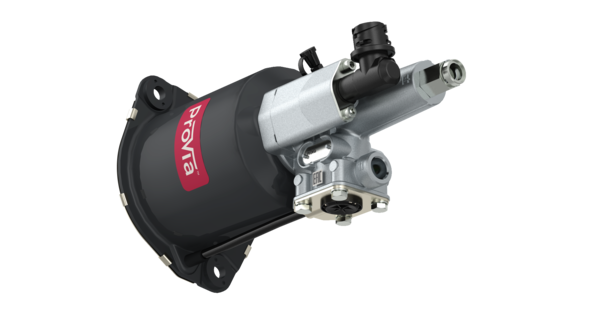

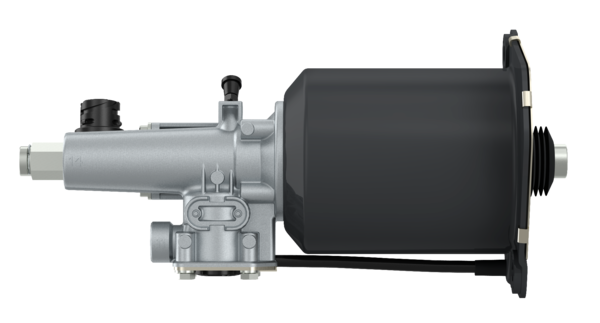

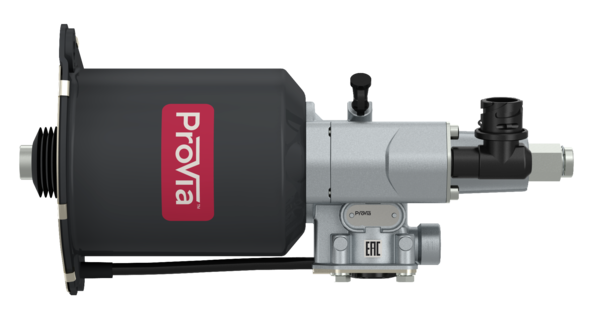

Clutch Servo
Part Number: PRO0510080
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 10.08 |
| Distance between holes | 110 mm |
| Electrical connection | Bayonet DIN 72585 – A1 |
| Fluid type | Brake fluid |
| Length | 373 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Ports | 1-4: Special fittings; 11: M16 × 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-rod thread | Hole Ø 12.0 mm |
| Size | 101.6 mm |
| Stroke | 85.0 mm |
| Technical specification | AM specification |
| Temperature range | -20°C to +80°C |
| Voltage | 12 V |
| Wear measurement | Electronic distance sensor module |
| GTIN | 04057877002435 |
| Size (mm x mm x mm) | 420 x 150 x 160 |
| UPC | 193134004775 |
| Weight (kg) | 3.498 |
| Weight (lb) | 7.712 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505143 |
| DAF | 1506464 |
| DAF | 1506468 |
| EVOBUS | A0002541247 |
| EVOBUS | A0002540047 |
| EVOBUS | A0002952818 |
| MERCEDES-BENZ | A0002540047 |
| MERCEDES-BENZ | A0002541247 |
| MERCEDES-BENZ | A0002952818 |
| MERCEDES-BENZ | 0002540047001 |
| MERCEDES-BENZ | 0002540047Z002 |
| MERCEDES-BENZ | 0002541247Z002 |
| MERCEDES-BENZ | A0002540047001 |
| MERCEDES-BENZ | A0002540047Z002 |
| MERCEDES-BENZ | A0002541247Z002 |
| PACCAR | 1505143R |
| PACCAR | 1506464 |
| RENAULT | 5021170437 |
| SCANIA | 1935608 |
