Description

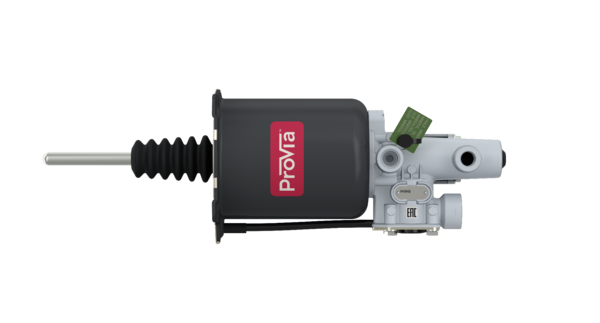

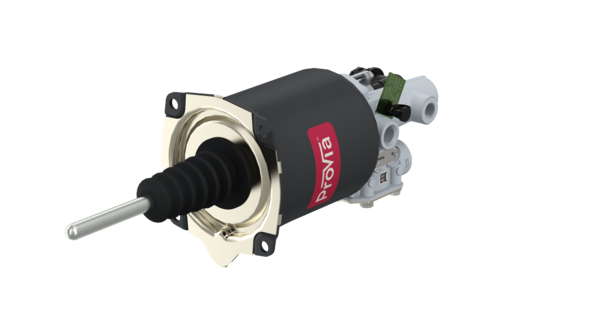

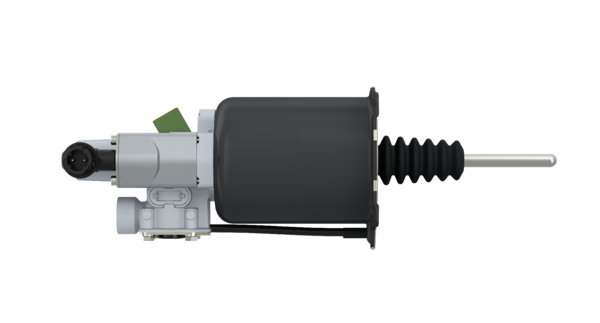

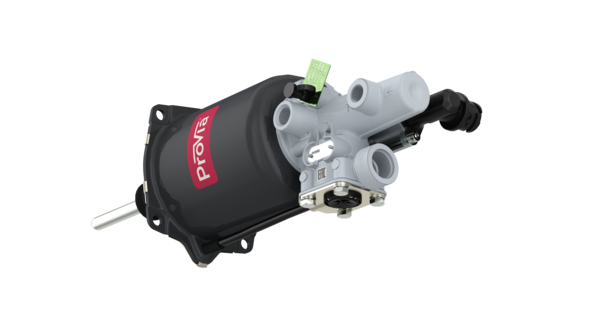

Clutch Servo
Part Number: PRO0510010
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 10.08 |
| Distance between holes | 110 mm |
| Electrical connection | Bayonet DIN 72585 – A1 – 2.1 – SN K2 |
| Fluid type | Mineral oil |
| Length | 419 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Mineral oil |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Ports | 1-4: M14 × 1.5; 11: M22 x 1.5 VOSS 230 |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Size | 101.6 mm |
| Stroke | 85.0 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| Wear measurement | Electronic distance sensor module |
| GTIN | 04057877002329 |
| Size (mm x mm x mm) | 420 x 160 x 150 |
| UPC | 193134004812 |
| Weight (kg) | 3.429 |
| Weight (lb) | 7.56 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81307256116 |
| NEOPLAN | 81307256116 |
