Description

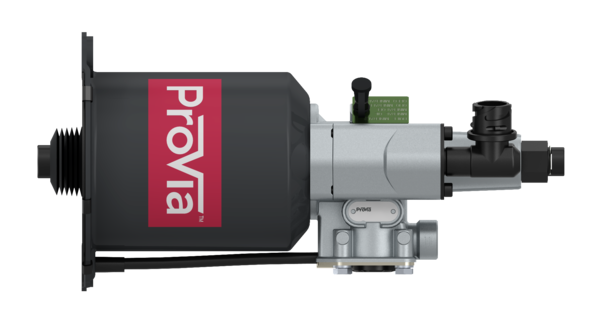

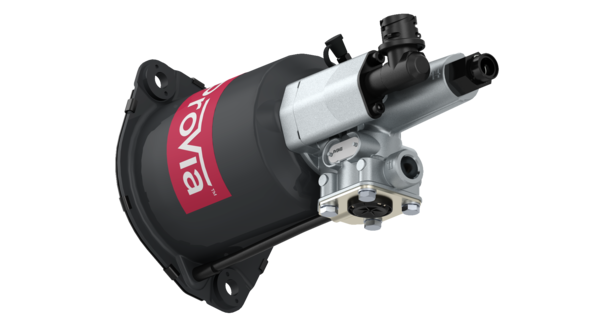

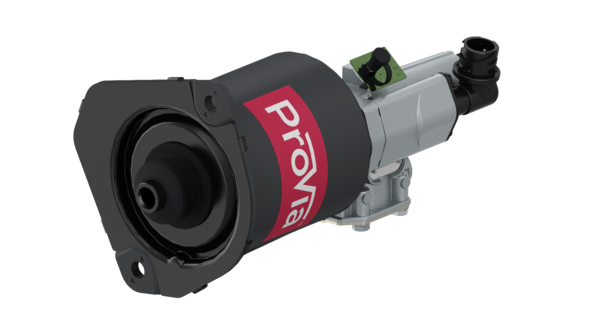

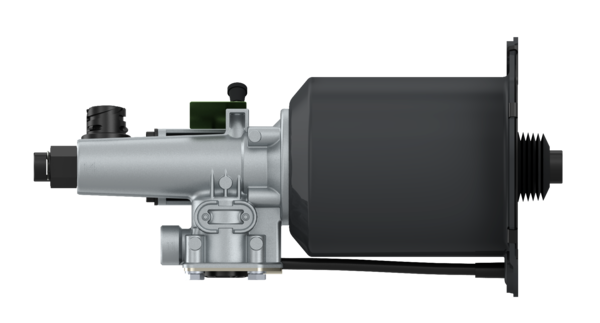

Clutch Servo
Part Number: PRO0510030
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 9.2875 |
| Distance between holes | 110 mm |
| Electrical connection | Bayonet DIN 72585 – A1 |
| Fluid type | Mineral oil |
| Length | 373 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Mineral oil |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1-4 | M 16 x 1.5 |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Ports | 1-4: Special fittings; 11: M16 × 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-rod thread | Hole Ø 12.0 mm |
| Size | 101.6 mm |
| Stroke | 85.0 mm |
| Technical specification | AM specification |
| Temperature range | -20°C to +80°C |
| Voltage | 12 V |
| Wear measurement | Electronic distance sensor module |
| GTIN | 04057877001858 |
| Size (mm x mm x mm) | 405 x 156 x 147 |
| UPC | 193134003396 |
| Weight (kg) | 3.3 |
| Weight (lb) | 7.2752 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1527600 |
| MAN | 81307256104 |
| MAN | 0002540447 |
| MERCEDES-BENZ | A0002540447 |
| MERCEDES-BENZ | B954237513401 |
| MERCEDES-BENZ | 0002540447Z002 |
| MERCEDES-BENZ | A0002540447Z001 |
| MERCEDES-BENZ | A0002540447Z002 |
| NEOPLAN | 81307256104 |
| PACCAR | 1527600 |
| SCANIA | 1935609 |
