Description

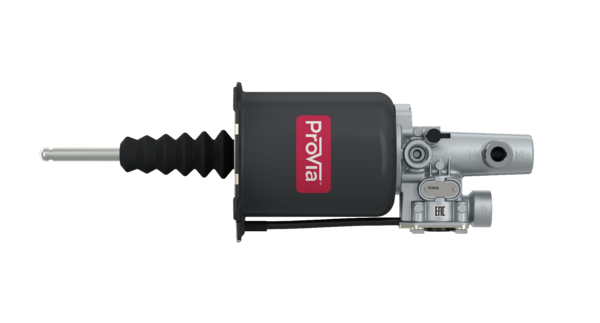

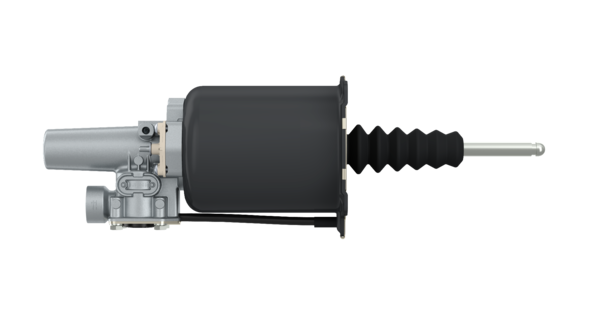

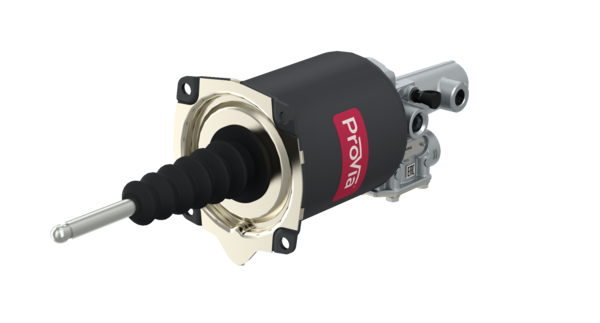

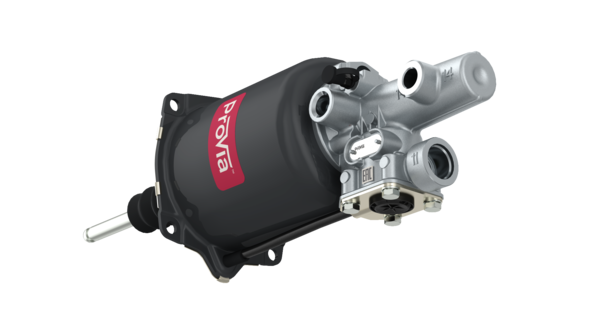

Clutch Servo
Part Number: PRO0510090
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 7.062 |
| Distance between holes | 110 mm |
| Fluid type | Brake fluid |
| Length | 427 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Ports | 1-4: M14 x 1.5; 11: M22 x 1.5 VOSS 230 |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Size | 101.6 mm |
| Stroke | 84.9 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Wear measurement | Mechanical wear indicator |
| GTIN | 04057877004705 |
| Size (mm x mm x mm) | 428 x 125 x 132 |
| UPC | 193134004799 |
| Weight (kg) | 2.974 |
| Weight (lb) | 6.557 |
