Description

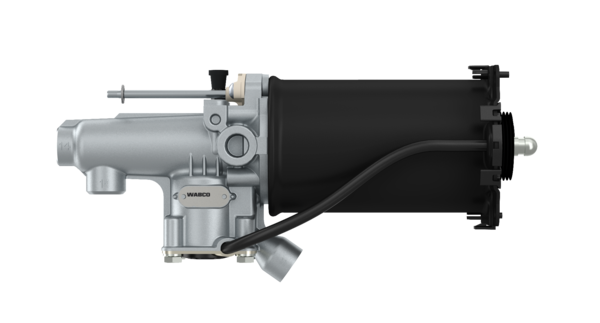

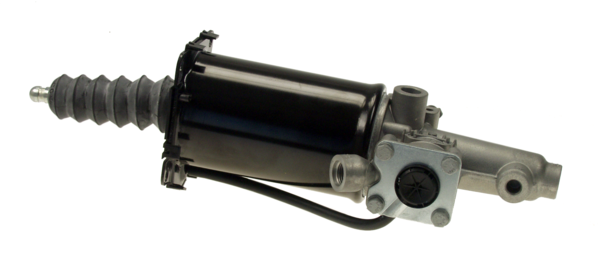

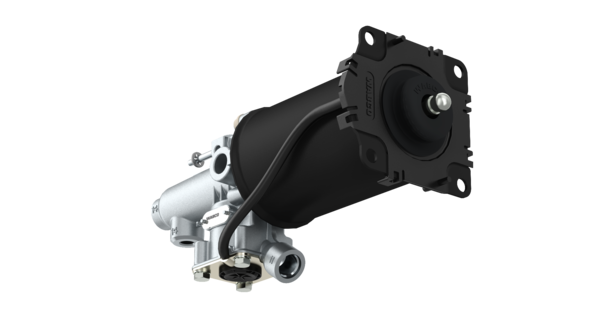

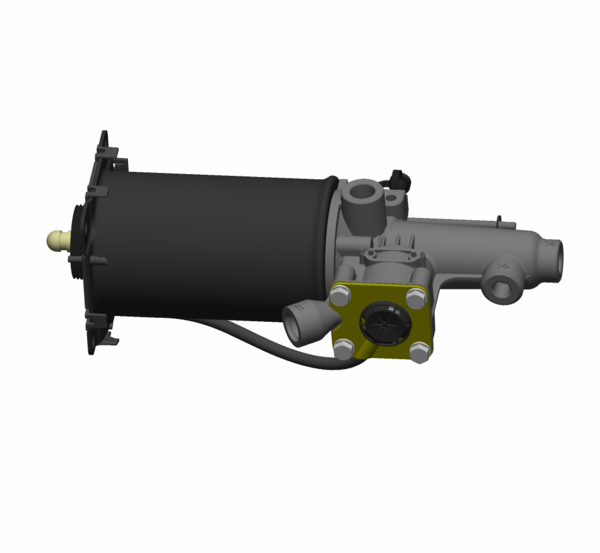

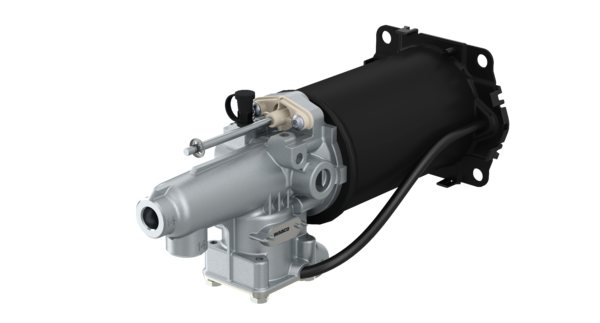

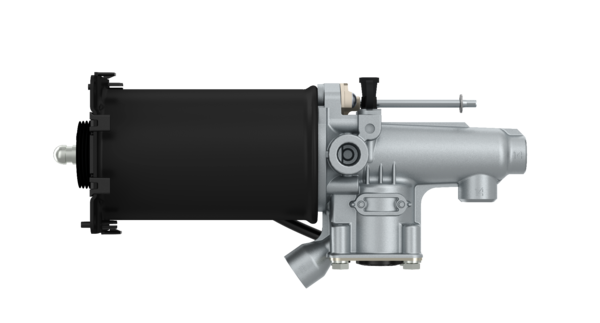

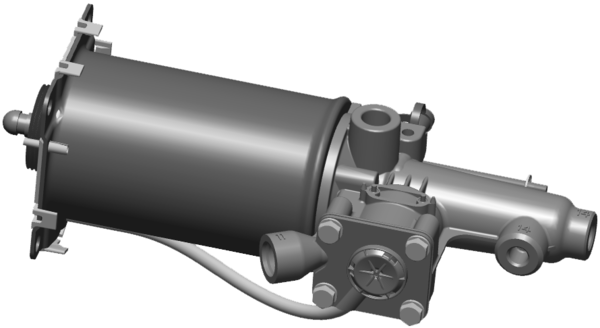

Clutch Servo
Part Number: 9700518110
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.726 |
| Distance between holes | 110 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 373 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 JED – 464 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -30°C to +100°C |
| GTIN | 04057875300809 |
| Size (mm x mm x mm) | 411 x 108 x 129 |
| UPC | 193133374329 |
| Weight (kg) | 2.056 |
| Weight (lb) | 4.5327 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1337007 |
| DAF | 1443520 |
| DAF | 1443521 |
| DAF | 1241256 |
| DAF | 1340024 |
| DAF | 1346866 |
| DAF | 286295 |
