Description

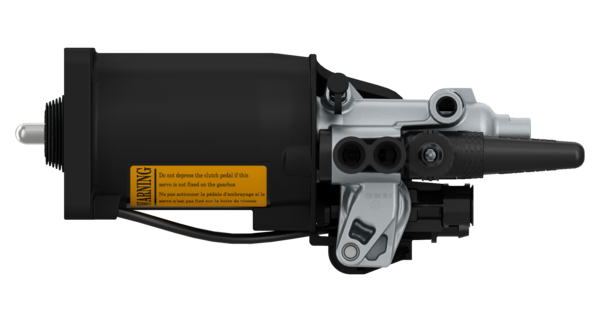

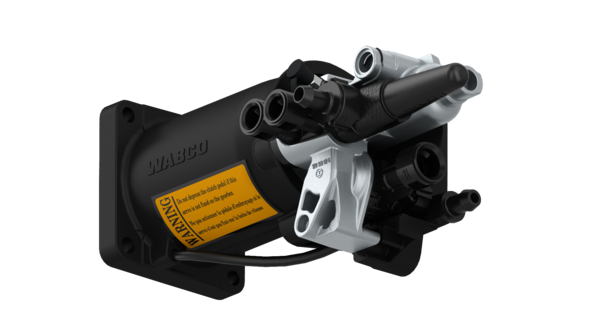

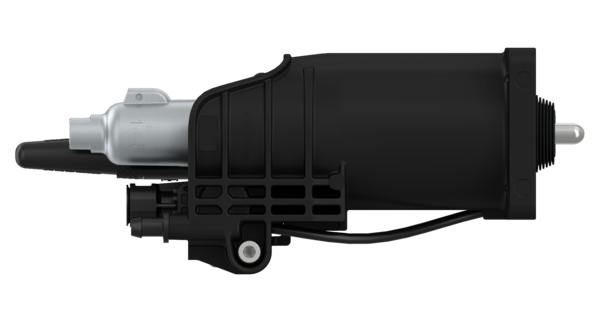

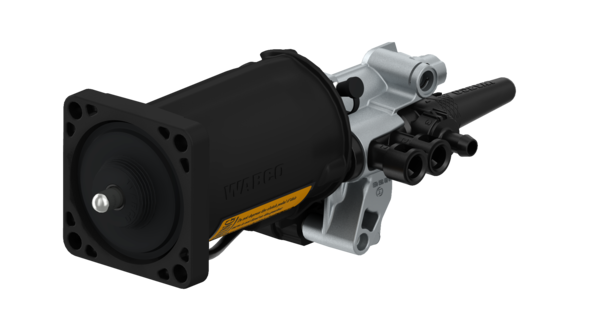

Clutch Servo
Part Number: 9700516040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.682 |
| Distance between holes | 110 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 318 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 11 | 2000 – 1/2″ |
| Port thread 12 | 2000 – 3/8″ |
| Port thread 22 | 2000 – 3/8″ |
| Port thread 31 | 2000-1/2″ |
| Port thread 32 | Ø 8.0 mm |
| Port thread 33 | Ø 11.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 83.5 mm |
| Technical specification | OE specification |
| Temperature range | -30°C to +100°C |
| GTIN | 04057875300663 |
| Size (mm x mm x mm) | 395 x 116 x 124 |
| UPC | 193133374183 |
| Weight (kg) | 1.575 |
| Weight (lb) | 3.472 |
OEM Cross References
| Brand | Reference No |
|---|---|
| RENAULT | 7420875069 |
