Description

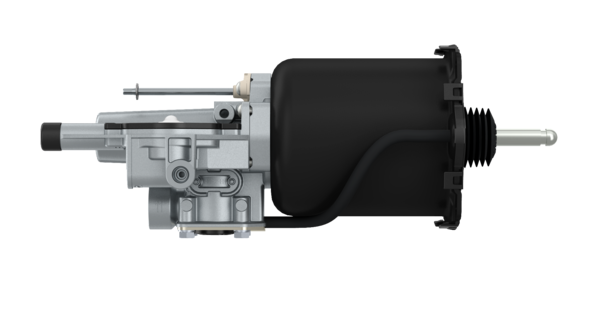

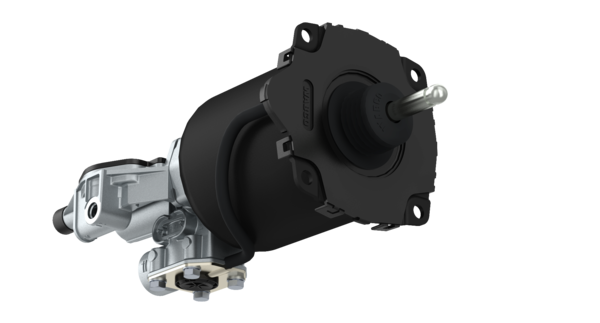

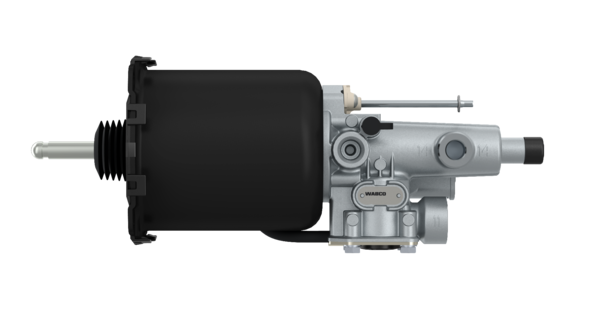

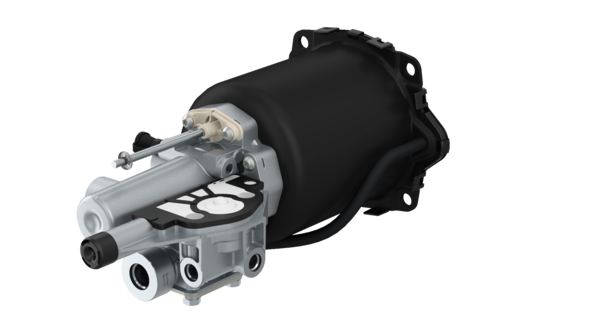

Clutch Servo
Part Number: 9700514820
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 8.072 |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 347 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 JED – 388 |
| Port thread 12 | M10 x 1.0 JED – 388-1 |
| Port thread 22 | M10 x 1.0 JED – 388-1 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 31.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875300533 |
| Size (mm x mm x mm) | 418 x 136 x 142 |
| UPC | 193133374114 |
| Weight (kg) | 2.992 |
| Weight (lb) | 6.596 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DONGFENG (DFM) | 1608010-WABCO |
| FAW | 160230554B |
| FAW | 160230554BB |
| FAW | 1602305-54B/B |
| SAIC-IVECO HONGYAN | 1602-500530 |
| SAIC-IVECO HONGYAN | 580 149 070 7 |
| SHAANXI | DZ91189230178 |
| SINOTRUK (CNHTC) | WG9725230056/2 |
