Description

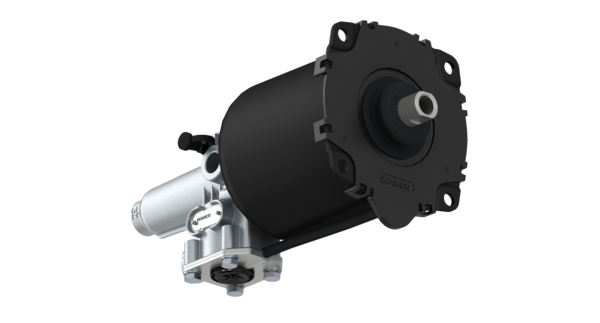

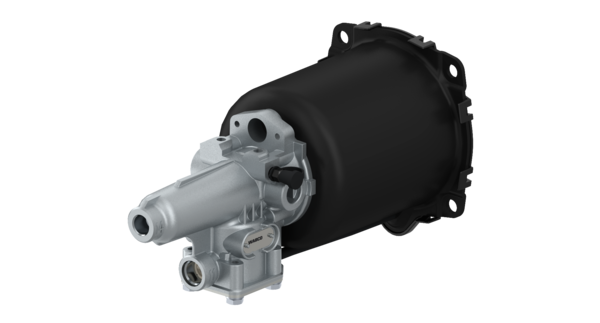

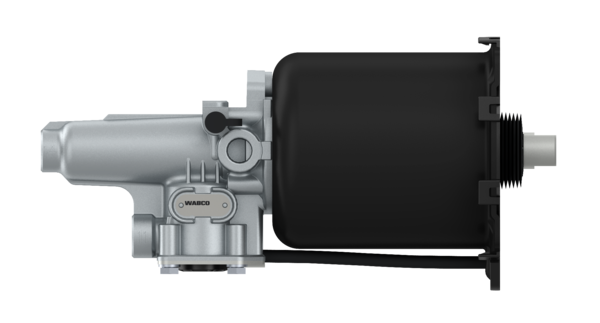

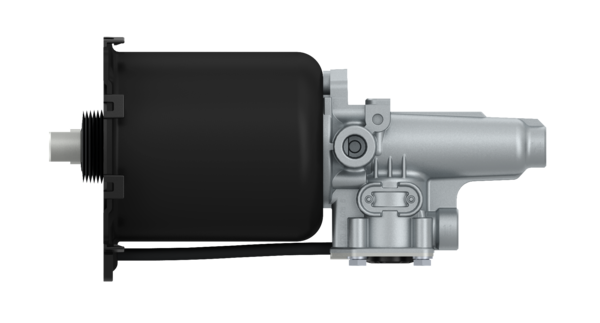

Clutch Servo
Part Number: 9700514600
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.88 |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 283 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 JED – 464 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | M14 x 1.5 |
| Stroke | 75.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875300328 |
| Size (mm x mm x mm) | 350 x 140 x 120 |
| UPC | 193133373803 |
| Weight (kg) | 2.7 |
| Weight (lb) | 5.9525 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HIGER | 16G42-04010 |
| KING LONG | 16G4204010 |
| KING LONG | 16G42-04010 |
| YUTONG | 1604-00252 |
| ZHONGTONG | 1609-10-00018 |
