Description

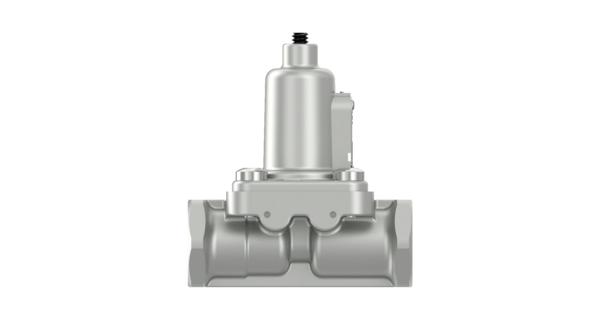

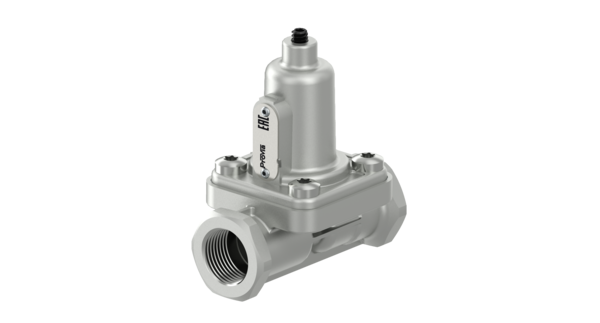

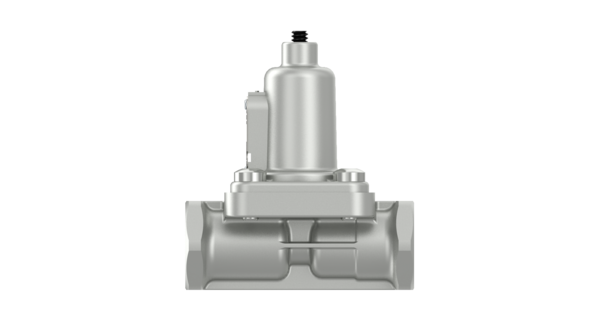

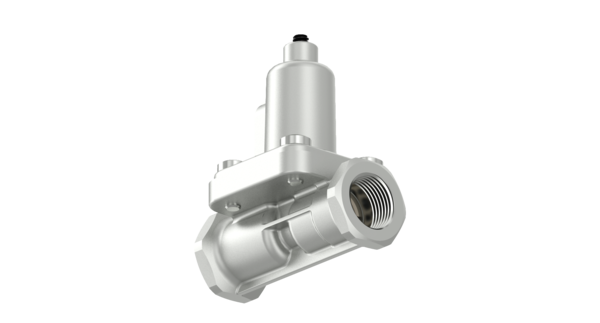

Charging Valve
Part Number: PRO1220330
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 0.435 |
| Charging pressure | 8.0 bar |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | With limited Return Flow |
| GTIN | 04057877049843 |
| Size (mm x mm x mm) | 100 x 82 x 53 |
| Weight (kg) | 0.22 |
| Weight (lb) | 0.485 |
OEM Cross References
| Brand | Reference No |
|---|---|
| LIEBHERR | 502677408 |
| MAN | 81521106056 |
| MAN | 81521106060 |
| MAN | 81521106086 |
| MAN | 81521106088 |
| MAN | 81521106094 |
| MERCEDES-BENZ | B916025025501 |
| NEOPLAN | 110248800 |
| NEOPLAN | 81521106056 |
