Description

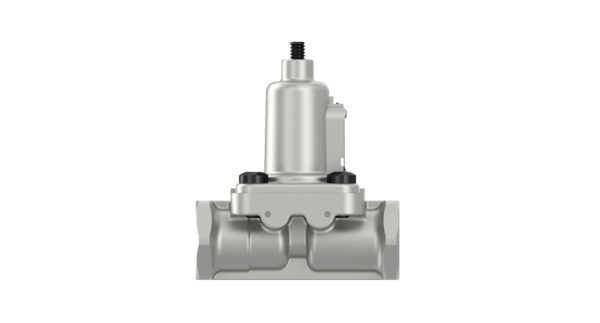

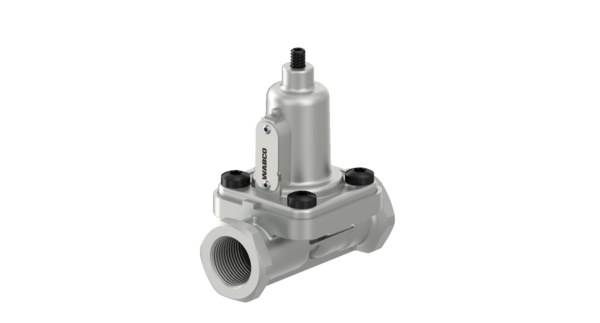

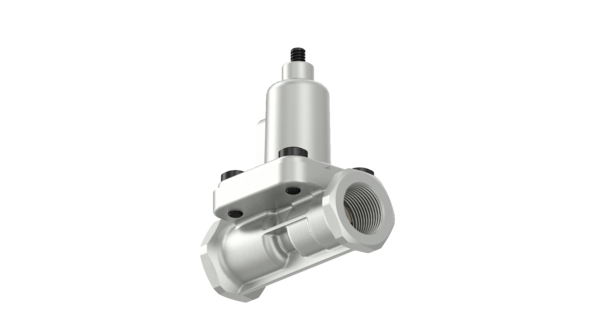

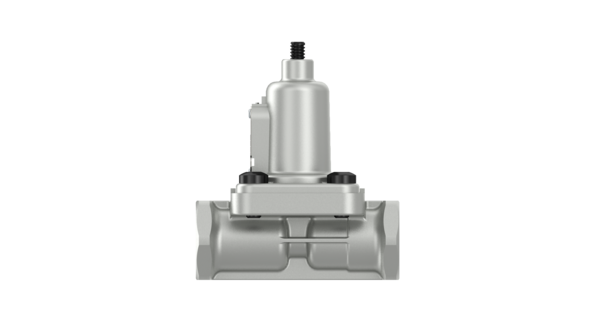

Charging Valve
Part Number: 4341001270
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.36846 |
| Charging pressure | 6.7 bar |
| Comments | Trailer |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 5.3 to 7.0 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Without Return Flow |
| GTIN | 04057875176060 |
| Size (mm x mm x mm) | 79 x 88 x 53 |
| UPC | 193133275305 |
| Weight (kg) | 0.422 |
| Weight (lb) | 0.93035 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0014298244 |
| EVOBUS | A0024298244 |
| FAUN | 1614288 |
| IKARBUS | 1614518 |
| LEYLAND DAF | EXABRB306 |
| MERCEDES-BENZ | 0024298244 |
| MERCEDES-BENZ | A0024298244 |
| MERCEDES-BENZ | 0014298944 |
| SCANIA | 2089946 |
