Description

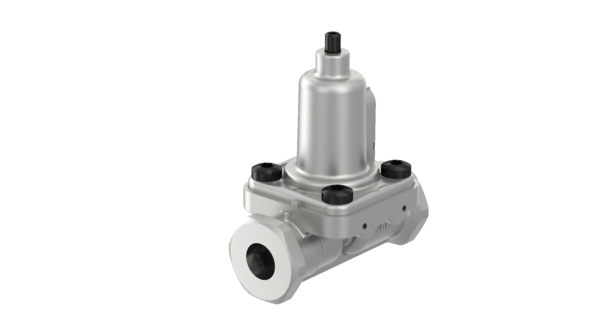

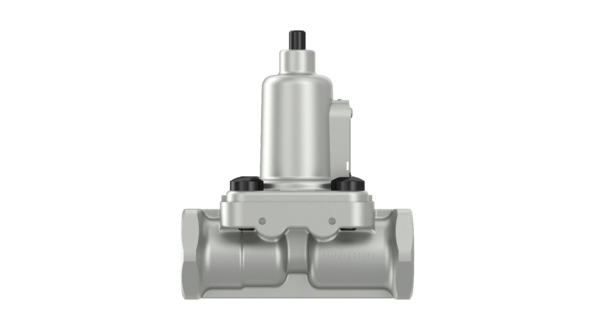

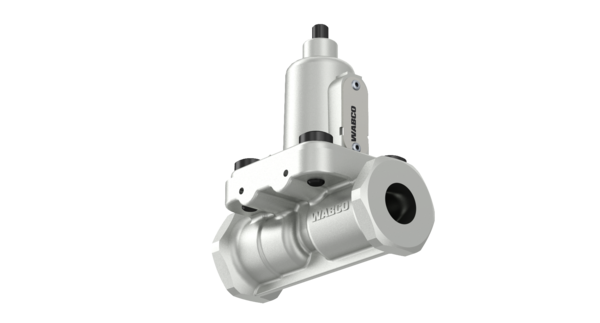

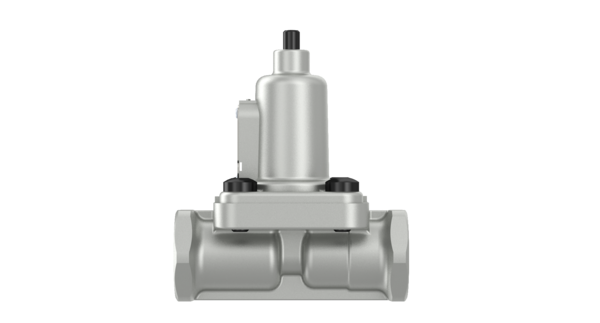

Charging Valve
Part Number: 4341005040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.449 |
| Comments | Closing pressure set at 6.7 ± 0.3 |
| Max. operating pressure | 10.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Range of adjustment | 7.3 to 8.5 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With limited Return Flow |
| GTIN | 04057875176428 |
| Size (mm x mm x mm) | 102 x 83 x 53 |
| UPC | 193133275633 |
| Weight (kg) | 0.494 |
| Weight (lb) | 1.0891 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0024294344 |
| MERCEDES-BENZ | 0024294344 |
| MERCEDES-BENZ | A0024294344 |
| SCANIA | 310779 |
| SCANIA | 1310779 |
