Description

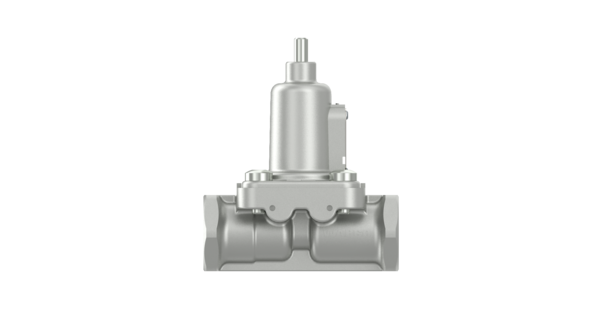

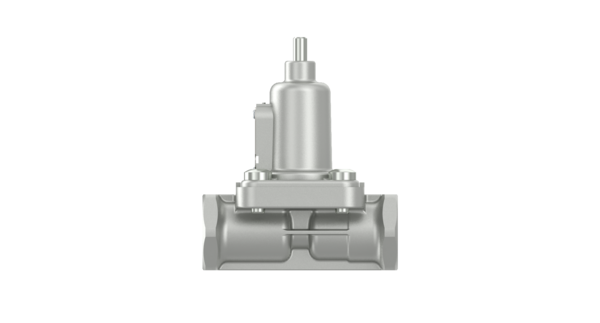

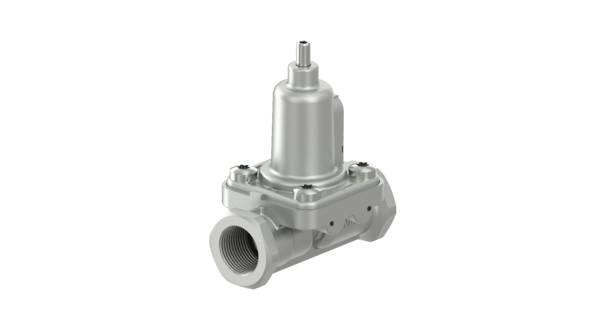

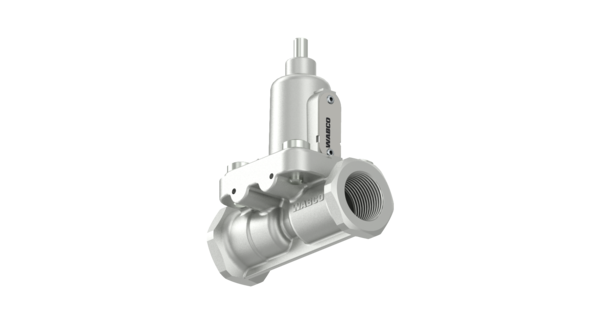

Charging Valve
Part Number: 4341002260
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.39114 |
| Charging pressure | 5.3 bar |
| Comments | Trailer |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With limited Return Flow |
| GTIN | 04057875176237 |
| Size (mm x mm x mm) | 82 x 90 x 53 |
| UPC | 193133438373 |
| Weight (kg) | 0.409 |
| Weight (lb) | 0.90169 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 175890 |
| EVOBUS | A0024292544 |
| FREIGHTLINER | 9628S4341002260 |
| IKARBUS | 1619319 |
| IVECO | 02516829 |
| IVECO | 03423544 |
| IVECO | 04686546 |
| IVECO | 04706889 |
| IVECO | 4706889 |
| KENWORTH | S434-100-226-0 |
| LEYLAND DAF | 109392 |
| MACK | 6300-4341002260 |
| MAN | 81521106028 |
| MAN | 81521106073 |
| MAN | 81521106087 |
| MERCEDES-BENZ | 0004296144 |
| MERCEDES-BENZ | 0024292544 |
| MERCEDES-BENZ | A0024292544 |
| MERITOR | S4341002260 |
| NEOPLAN | 110215800 |
| NEOPLAN | 110248510 |
| NEOPLAN | 11017213 |
| NEOPLAN | 81521106028 |
| PETERBILT | S434-100-226-0 |
| RENAULT | 0024771017 |
| RENAULT | 24771017 |
| TEREX | 26314240 |
| VOLVO | 1580313 |
| VOLVO | WAB4341002260 |
