Description

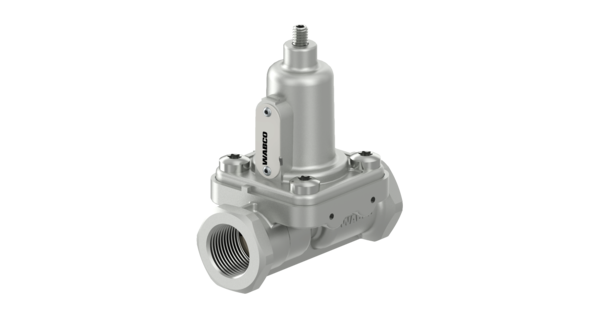

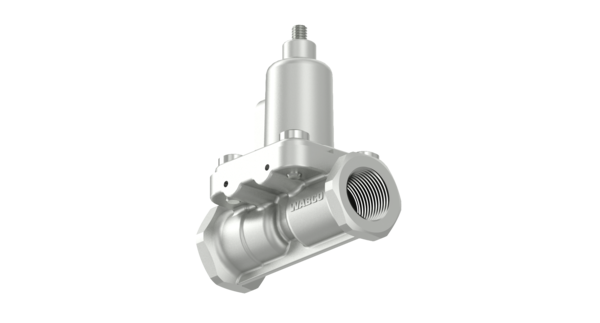

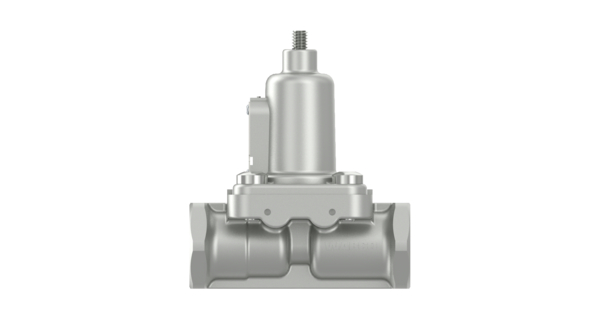

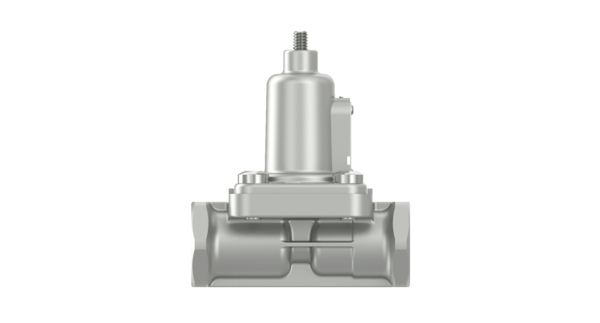

Charging Valve
Part Number: 4341000480
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.344 |
| Charging pressure | 8.8 bar |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With Return Flow |
| GTIN | 04057875175896 |
| Size (mm x mm x mm) | 86 x 80 x 50 |
| UPC | 193133275220 |
| Weight (kg) | 0.417 |
| Weight (lb) | 0.91933 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0054290544 |
| MERCEDES-BENZ | 0054290544 |
| MERCEDES-BENZ | A0054290544 |
