Description

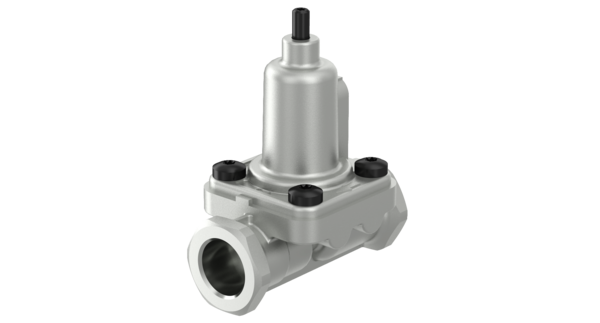

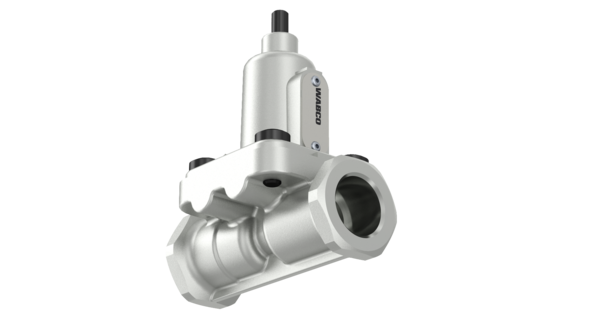

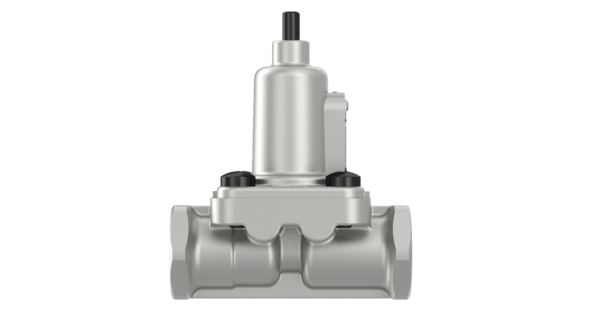

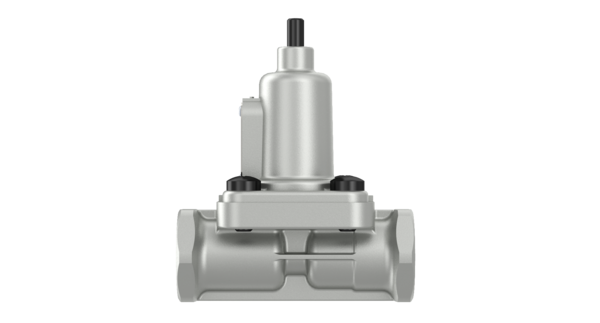

Charging Valve
Part Number: 4341002440
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.372 |
| Charging pressure | 7.5 bar |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 7.3 to 8.5 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With limited Return Flow |
| GTIN | 04057875176336 |
| Size (mm x mm x mm) | 93 x 80 x 50 |
| UPC | 193133275589 |
| Weight (kg) | 0.427 |
| Weight (lb) | 0.94137 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 84521106018 |
| MAN | 88521016007 |
| MAN | 88521016008 |
| NEOPLAN | 11018661 |
| NEOPLAN | 84521106018 |
| RENAULT | 5010465101 |
| SCANIA | 1932748 |
| SOLARIS | 1122359000 |
| VOLVO | 6792195 |
