Description

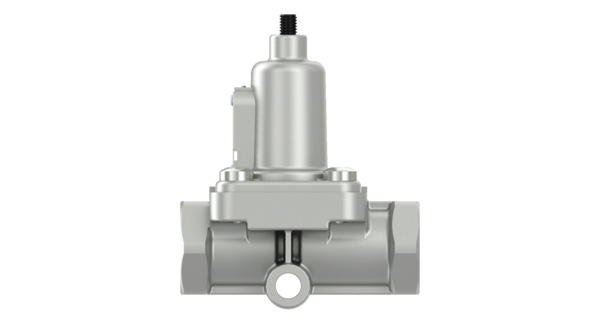

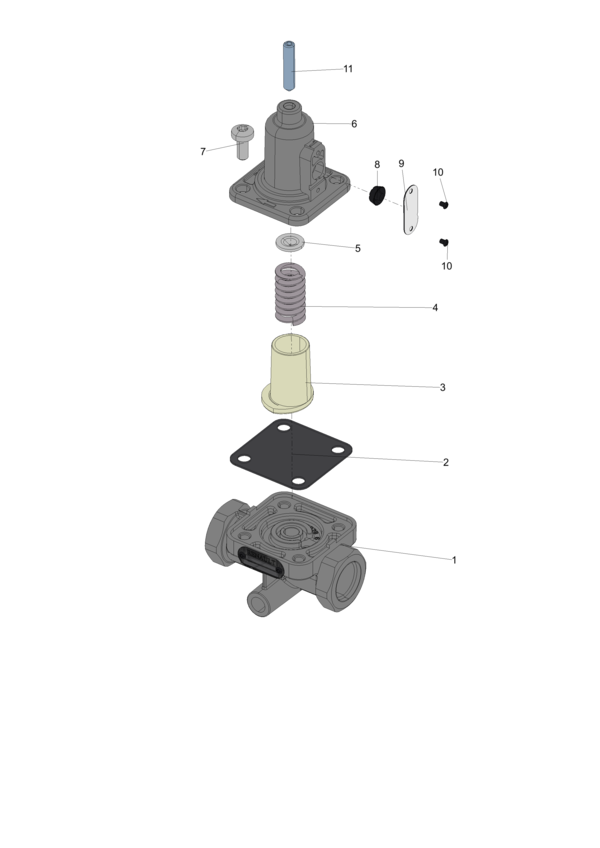

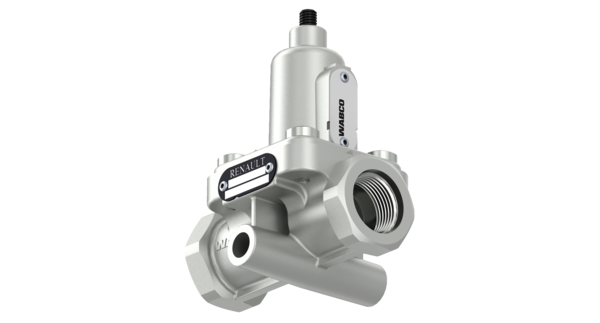

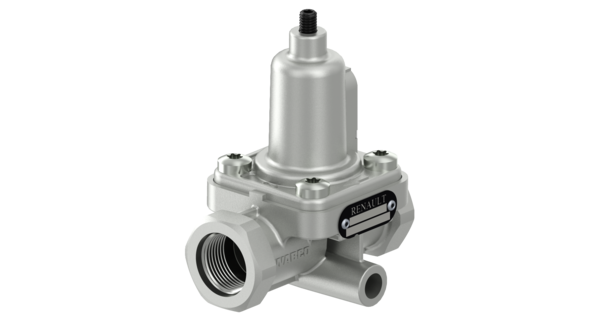

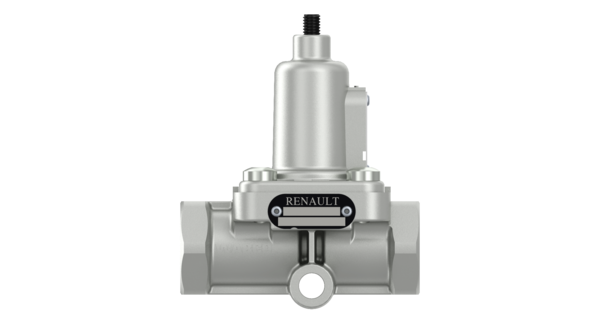

Charging Valve
Part Number: 4341002530
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.493 |
| Charging pressure | 6.1 bar |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With limited Return Flow |
| GTIN | 04057875176374 |
| Size (mm x mm x mm) | 99 x 83 x 60 |
| UPC | 193133275183 |
| Weight (kg) | 0.515 |
| Weight (lb) | 1.135 |
OEM Cross References
| Brand | Reference No |
|---|---|
| PACCAR | 1528741 |
| RENAULT | 5010422740 |
