Description

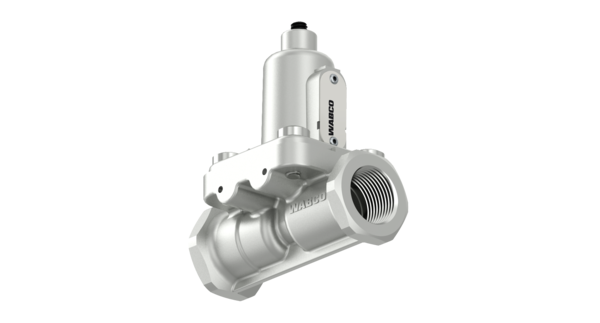

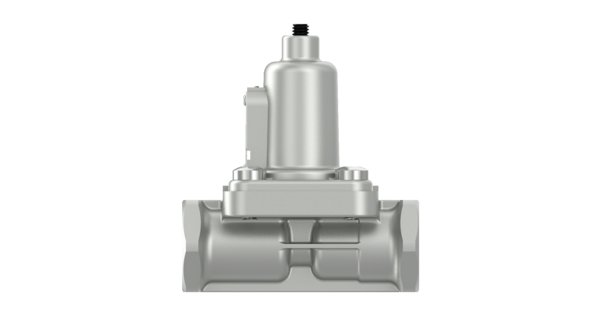

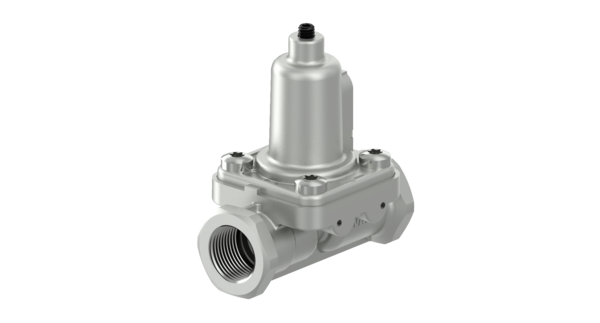

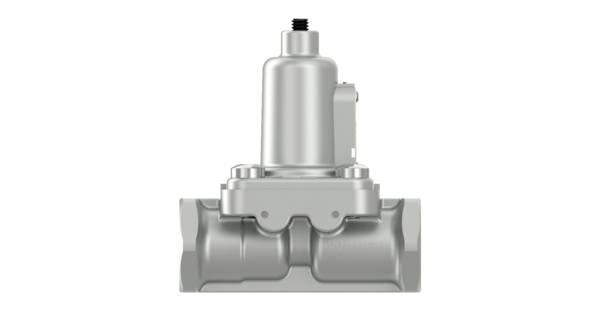

Charging Valve
Part Number: 4341002240
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.384 |
| Charging pressure | 1.7 bar |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 0.5 to 5.2 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With limited Return Flow |
| GTIN | 04057875176183 |
| Size (mm x mm x mm) | 96 x 80 x 50 |
| UPC | 193133438366 |
| Weight (kg) | 0.4 |
| Weight (lb) | 0.88185 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0054293444 |
| IVECO | 08194996 |
| MACK | 6300-4341002240 |
| MERCEDES-BENZ | 0054293444 |
| MERCEDES-BENZ | A0054293444 |
| VOLVO | WAB4341002240 |
