Description

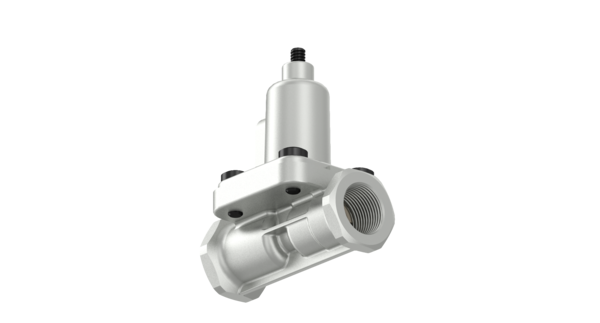

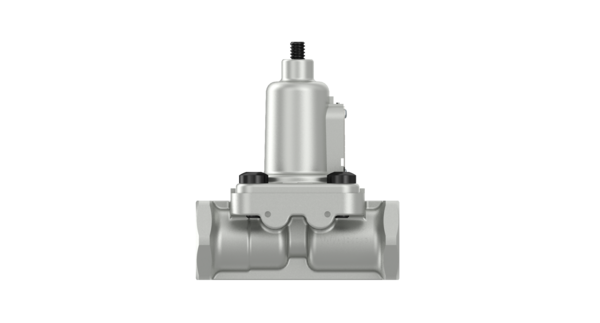

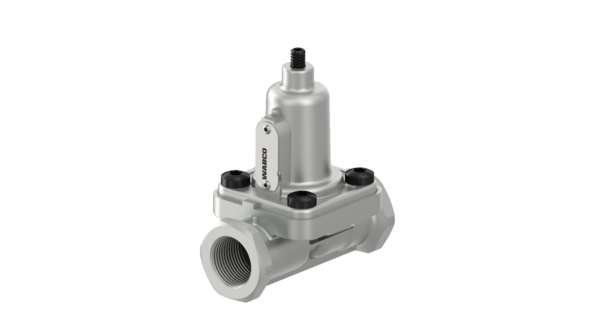

Charging Valve
Part Number: 4341000200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.37778 |
| Charging pressure | 3.0 bar |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 0.5 to 5.2 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With Return Flow |
| GTIN | 04057875175704 |
| Size (mm x mm x mm) | 81 x 88 x 53 |
| UPC | 193133274889 |
| Weight (kg) | 0.409 |
| Weight (lb) | 0.90169 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1521962 |
| EVOBUS | A0014295944 |
| IKARBUS | 1614044 |
| MAN | 81521107003 |
| MAN | 81521600002 |
| MAN | 88521106011 |
| MAN | 88521106001 |
| MERCEDES-BENZ | 0014295944 |
| MERCEDES-BENZ | 0024296244 |
| MERCEDES-BENZ | A0014295944 |
| SCANIA | 1932730 |
| STEYR | 58600360303 |
| STEYR | 79000360319 |
| STEYR | 89000360391 |
| STEYR | 99000362206 |
| VAN HOOL | 637211310 |
| VOLVO | 352380 |
| VOLVO | 352480 |
