Description

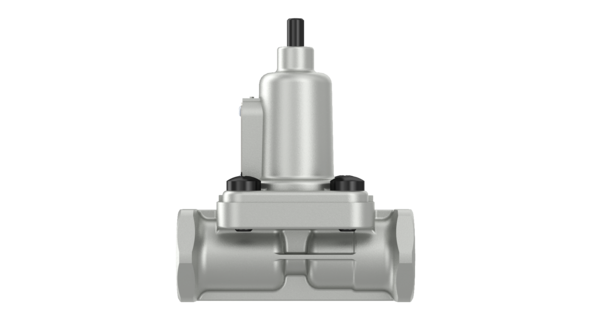

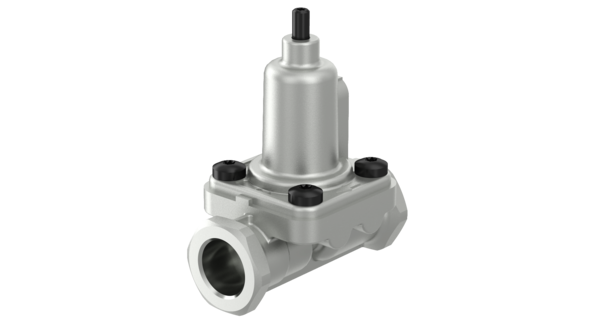

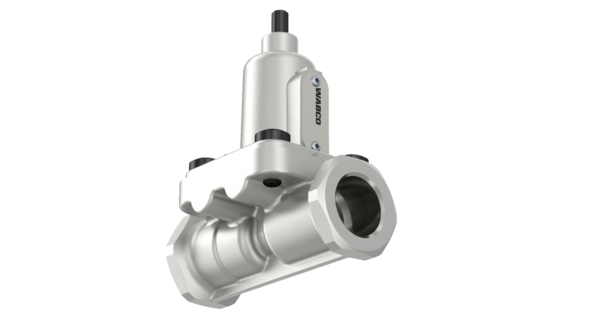

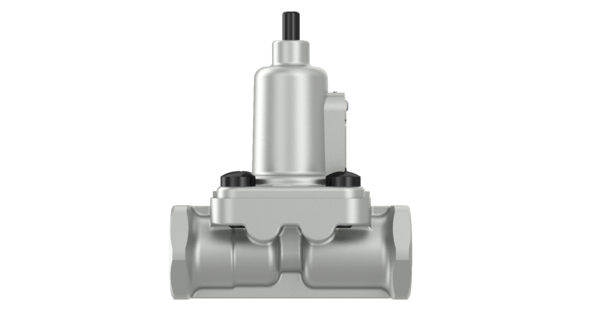

Charging Valve
Part Number: 4341002300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.38 |
| Comments | Closing pressure set at 6.8 ±0.2 |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 7.3 to 8.5 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With limited Return Flow |
| GTIN | 04057875176299 |
| Size (mm x mm x mm) | 95 x 80 x 50 |
| UPC | 193133275527 |
| Weight (kg) | 0.418 |
| Weight (lb) | 0.92153 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 175890 |
| DAF | 1518716 |
| IRISBUS | 4706889 |
| IVECO | 02516829 |
| IVECO | 03423544 |
| IVECO | 04686546 |
| IVECO | 04706889 |
| IVECO | 4706889 |
| IVECO | 116047 |
| LEYLAND DAF | 5101509000 |
| MAN | 81521106028 |
| MAN | 81521106073 |
| MERCEDES-BENZ | 0004296144 |
| NEOPLAN | 110248700 |
| PACCAR | 1518716 |
| VOLVO | 1580313 |
