Description

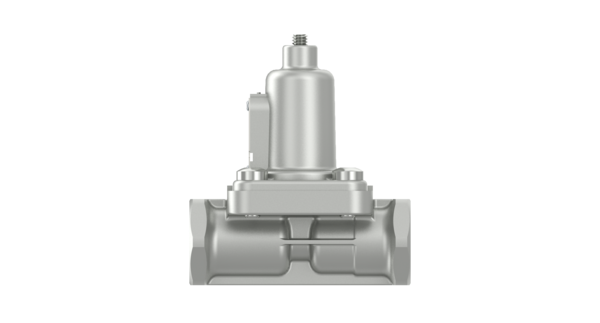

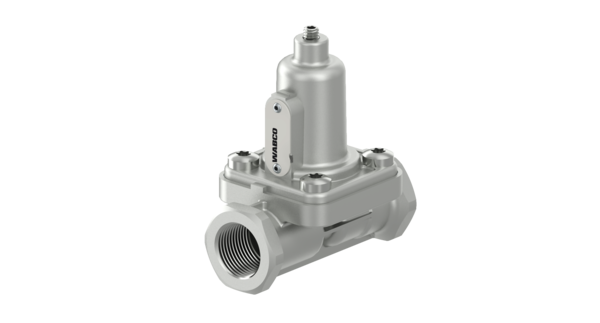

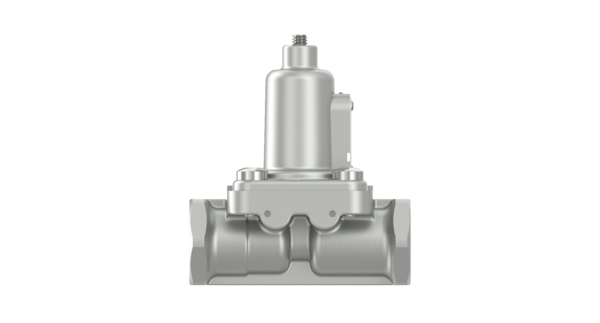

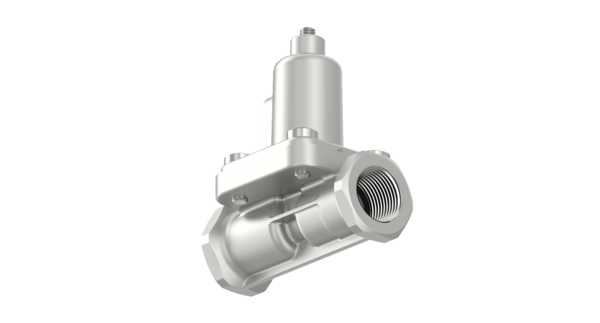

Charging Valve
Part Number: 4341002230
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.40418 |
| Charging pressure | 4.0 bar |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 0.5 to 5.2 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With limited Return Flow |
| GTIN | 04057875176268 |
| Size (mm x mm x mm) | 82 x 93 x 53 |
| UPC | 193133275350 |
| Weight (kg) | 0.415 |
| Weight (lb) | 0.91492 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | 8285399000 |
| EVOBUS | A0004297244 |
| KÄSSBOHRER | 82853990000 |
| MERCEDES-BENZ | 0004297244 |
| MERCEDES-BENZ | 0024297244 |
| MERCEDES-BENZ | A0004297244 |
| SCHMITZ CARGOBULL | 82853990000 |
| VAN HOOL | 637200880 |
| VOLVO | 1501008 |
| VOLVO | 1505810 |
