Description

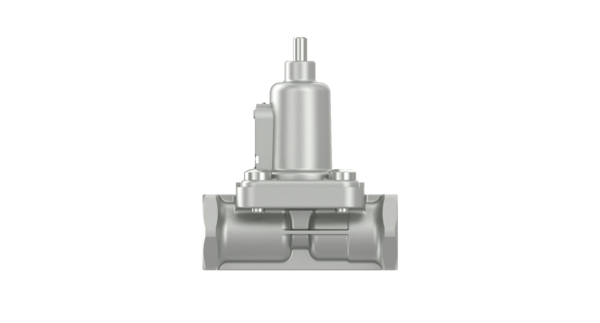

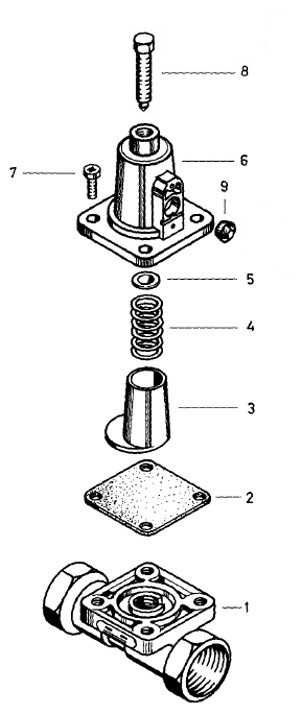

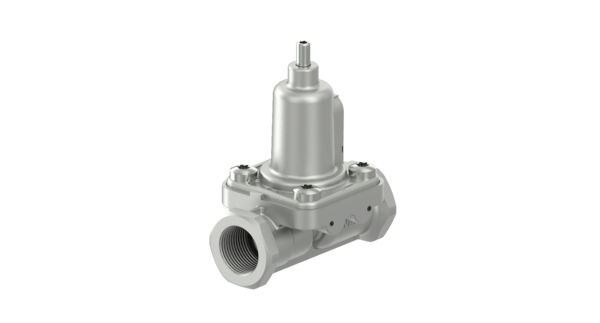

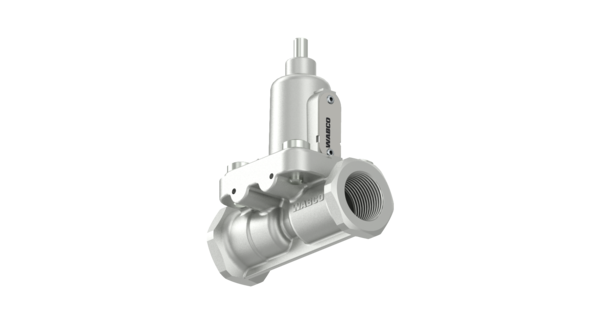

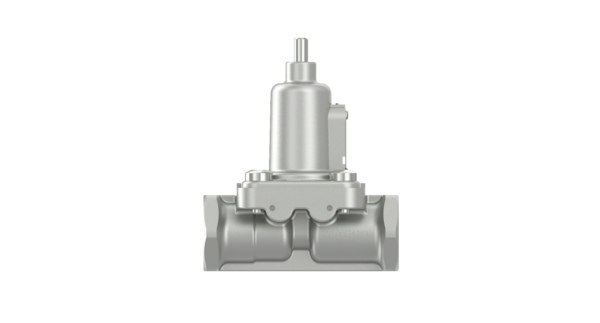

Charging Valve
Part Number: 4341002220
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.40836 |
| Charging pressure | 6.2 bar |
| Comments | Trailer |
| Max. operating pressure | 13.0 bar |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 5.3 to 7.0 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With limited Return Flow |
| GTIN | 04057875176220 |
| Size (mm x mm x mm) | 82 x 60 x 83 |
| UPC | 193133275374 |
| Weight (kg) | 0.417 |
| Weight (lb) | 0.91933 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517985 |
| EVOBUS | A0014294944 |
| GOLDHOFER | 110248400 |
| IRISBUS | U403004458 |
| IVECO | 02516830 |
| IVECO | 03423564 |
| IVECO | 04684664 |
| IVECO | 42032386 |
| KÖGEL | 187433 |
| KÖGEL | 329511 |
| LIEBHERR | 502924808 |
| LOHR | 4341002220 |
| MAN | 81521106065 |
| MERCEDES-BENZ | 0004296044 |
| MERCEDES-BENZ | 0004315406 |
| MERCEDES-BENZ | 0014294944 |
| MERCEDES-BENZ | 0014297944 |
| MERCEDES-BENZ | 0024296744 |
| MERCEDES-BENZ | 0034294844 |
| MERCEDES-BENZ | A0014294944 |
| NEOPLAN | 110248400 |
| NEOPLAN | 11017358 |
| PACCAR | 1517985 |
| RENAULT | 5000589982 |
| RENAULT | 5000504515 |
| RENAULT | PRO1806509 |
| SCANIA | 262080 |
| SCANIA | 2089950 |
| SOLARIS | 1102484000 |
| STEYR | 99100360032 |
| UD TRUCKS | 5222812964 |
| VOLVO | 1503227 |
| VOLVO | 1598426 |
| VOLVO | 1130644 |
