Description

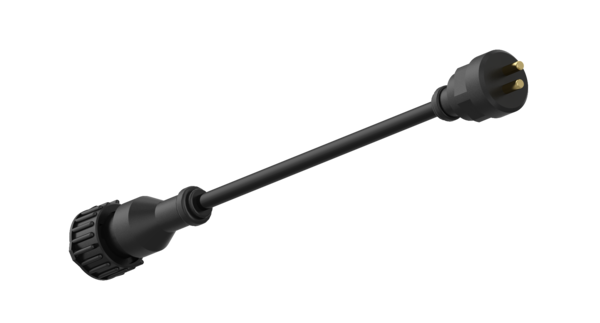

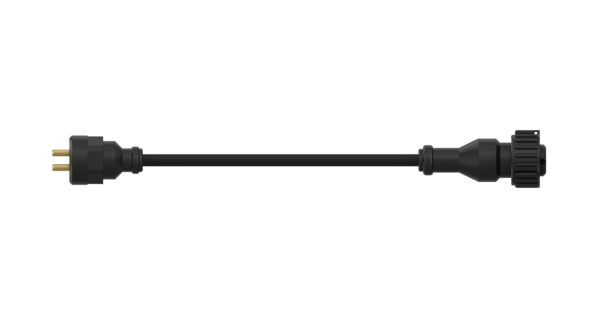

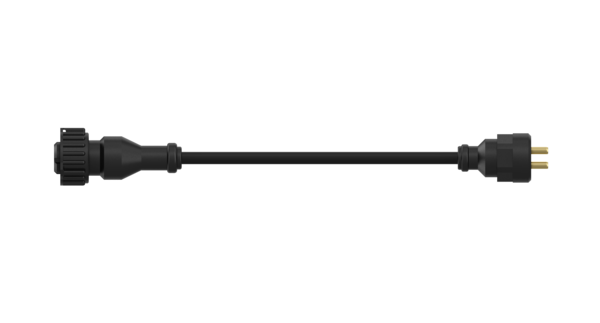

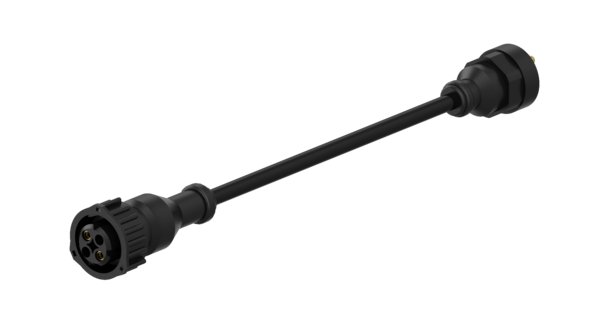

Cable with Socket
Part Number: 8946011342
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

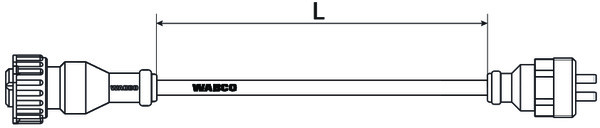

| Cable end (left side of diagram) | Bayonet socket DIN 72585- B1-2.1-Sn/K1 4-pin |
| Cable end (right side of diagram) | Kostal plug M 27 x 1 2-pin |
| Calculated Volume (dm³) | 0.25149 |
| Length | 0.15 m |
| Product category | Component |
| Technical specification | OE specification |
| GTIN | 04057875263487 |
| Size (mm x mm x mm) | 271 x 29 x 32 |
| UPC | 193133446514 |
| Weight (kg) | 0.053 |
| Weight (lb) | 0.11684 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1529236 |
| DOLL | 7109901 |
| FREIGHTLINER | TDAS8946011342 |
| KENWORTH | S894-601-134-2 |
| KÄSSBOHRER | 21151102108 |
| MACK | S8946011342 |
| MACK | 6300-8946011342 |
| MERITOR | S8946011342 |
| PACCAR | 1528728 |
| PETERBILT | S894-601-134-2 |
| SCHMITZ CARGOBULL | 1062374 |
| SCHWARZMÜLLER | 71774 |
| TIRSAN | 21151102108 |
| TOHO | T423-022 |
| VOLVO | 85134698 |
| VOLVO | WAB8946011342 |
