Description

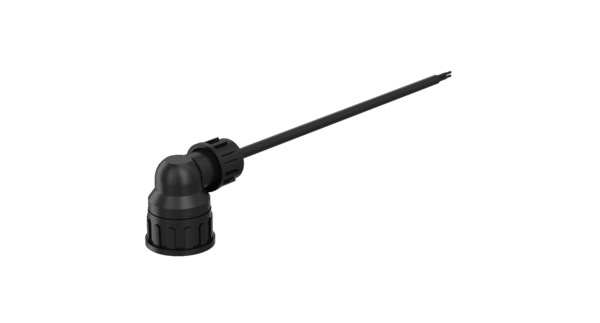

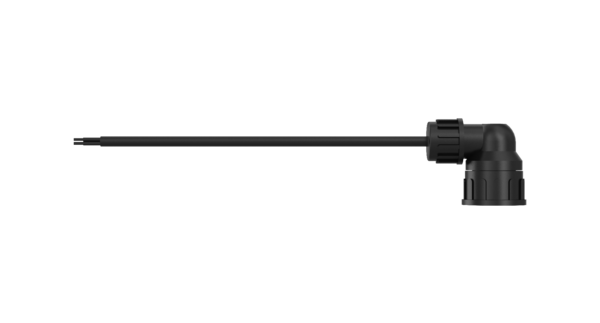

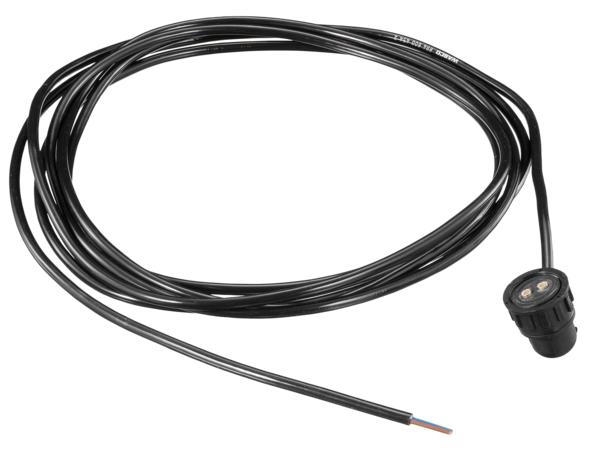

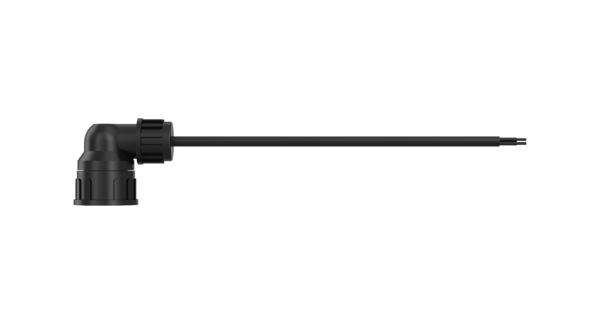

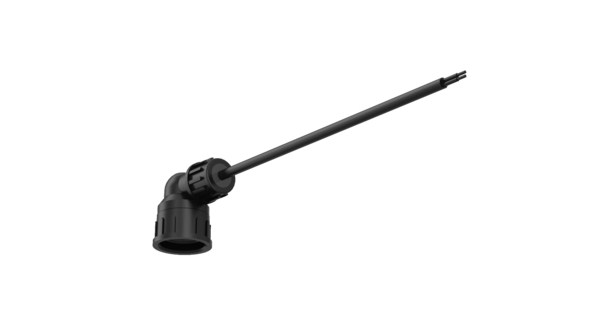

C.W. Cable with Socket
Part Number: 8946004542
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Air dryer |

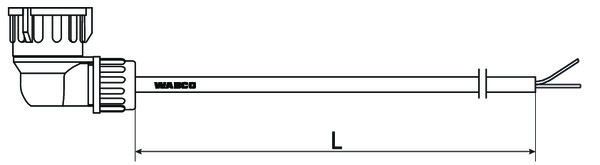

| Cable end (left side of diagram) | Socket M 27 x 1 2-pin |
| Cable end (right side of diagram) | Open 2-Strand 2 x 1 mm² |
| Calculated Volume (dm³) | 4.611 |
| Length | 5 m |
| Ports | Heater |
| Product category | Component |
| Technical specification | OE specification |
| GTIN | 04057875263395 |
| Size (mm x mm x mm) | 383 x 344 x 35 |
| UPC | 193133269984 |
| Weight (kg) | 0.265 |
| Weight (lb) | 0.5842 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FRUEHAUF | FO0762702 |
| GOLDHOFER | 170465 |
| HENDRICKSON | 8946004542 |
| IVECO | 60172332 |
| KALMAR IRION | 9234340005 |
| KEMPF | 2305015 |
| KÄSSBOHRER | 2095 |
| LIEBHERR | 502814601 |
| LOHR | F10005757 |
| MAN | 84254490020 |
| NOOTEBOOM | 1114020 |
| SCANIA | 1738471 |
| SCHMITZ CARGOBULL | 050221 |
| SCHMITZ CARGOBULL | 50221 |
| SCHMITZ CARGOBULL | INS0120006 |
| VAN HOOL | 10753610 |
| VDL | 20195622 |
| VDL | 195622 |
| VOLVO | 526056015010 |
