Description

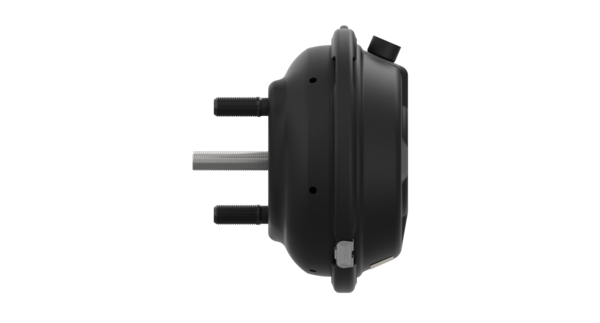

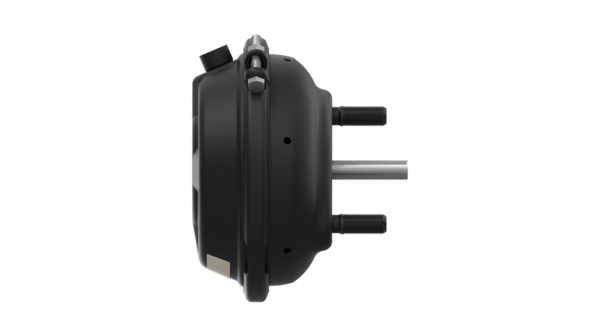

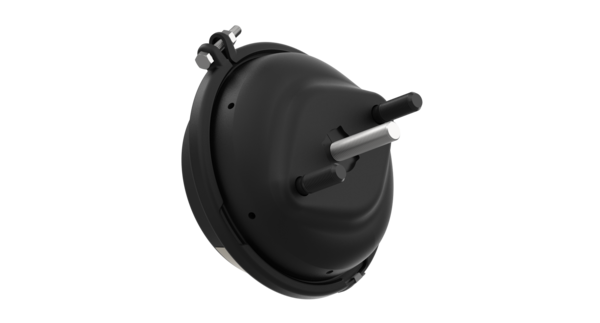

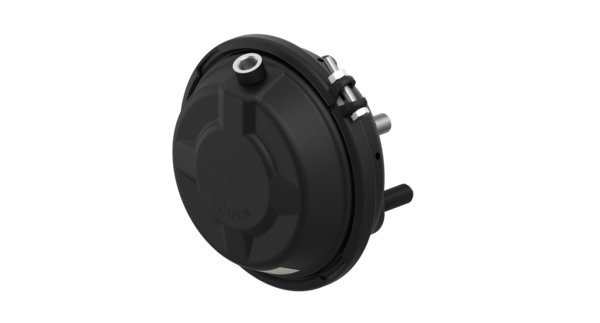

Brake Chamber
Part Number: 4231070600
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 7.565 |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2 bar |
| Output force | 11700 N |
| Output force m | 11700 N |
| Port threads | Rc 3/8″ (ISO 7-1) |
| Ports | 23° |
| Product category | Device |
| Push-rod length | 59 mm |
| Push-rod thread | M16 x 1.5 |
| Return-spring force | 245 N |
| Stroke | 65.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 111.0 mm |
| Type | 30 |
| Type of operation | Cam |
| Version | Without boot |
| Yoke | Without |
| GTIN | 04057875164326 |
| Size (mm x mm x mm) | 205 x 205 x 180 |
| UPC | 193133247739 |
| Weight (kg) | 4.53 |
| Weight (lb) | 9.987 |
