Description

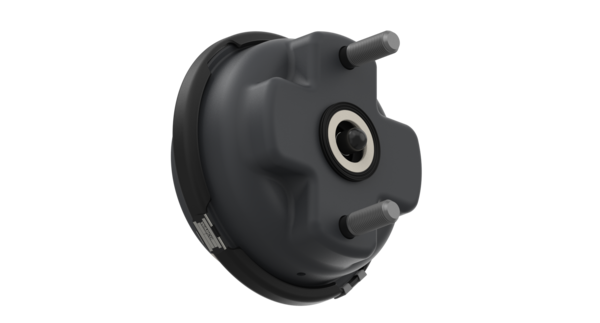

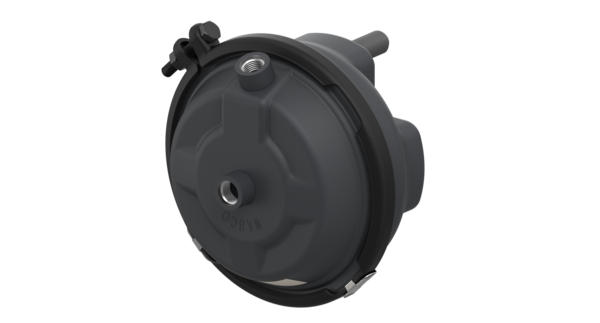

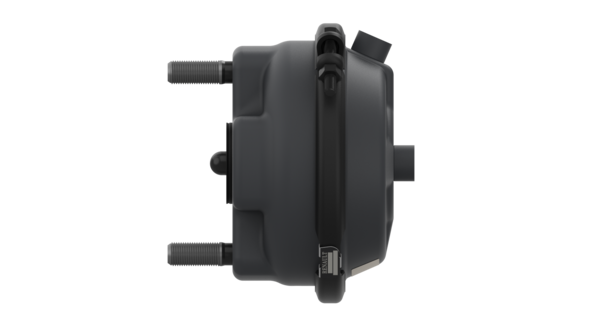

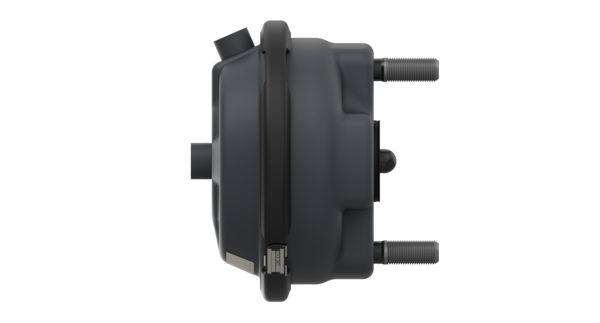

Brake Chamber (Disc brake)
Part Number: 4235060640
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 6.3221 |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2 bar |
| Output force | 8200 N |
| Output force m | 8200 N |
| Port threads | M16 x 1.5 |
| Ports | 24° |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Return-spring force | 200 N |
| Stroke | 65.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 121.0 mm |
| Type | 24 |
| Type of operation | Disc |
| Version | Without boot |
| Yoke | Without |
| GTIN | 04057875166566 |
| Size (mm x mm x mm) | 186 x 206 x 165 |
| UPC | 193133250210 |
| Weight (kg) | 3.685 |
| Weight (lb) | 8.124 |
OEM Cross References
| Brand | Reference No |
|---|---|
| RENAULT | 7421483526 |
| RENAULT | 120604 |
