Description

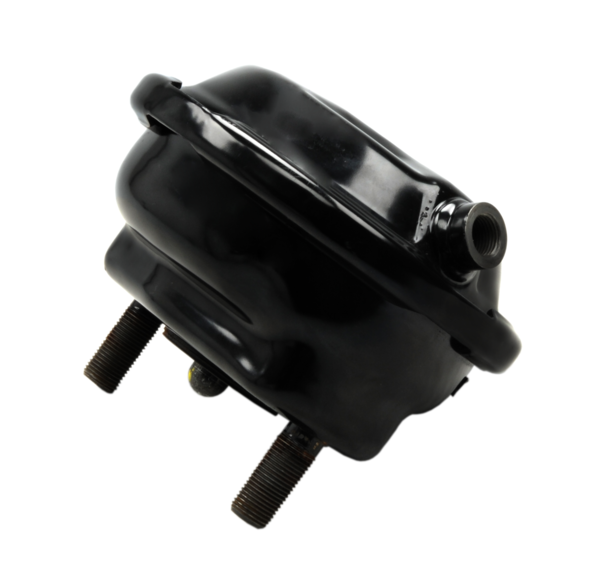

Brake Chamber (Disc brake)
Part Number: 4235050600
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 38.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 4.5783 |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.0 bar |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Return-spring force | 150 N |
| Stroke | 57.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 103.0 mm |
| Type | 20 |
| Type of operation | Disc |
| Version | Without boot |
| GTIN | 04057875165835 |
| Size (mm x mm x mm) | 170 x 141 x 191 |
| UPC | 193133249603 |
| Weight (kg) | 3.093 |
| Weight (lb) | 6.8189 |
