Description

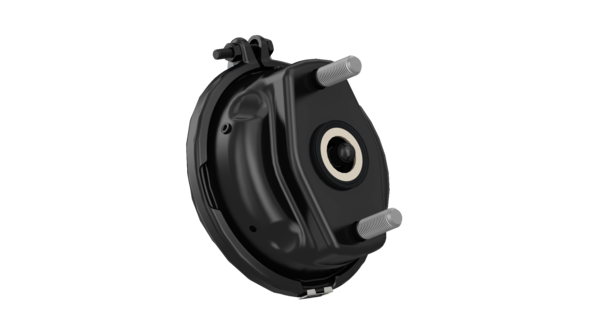

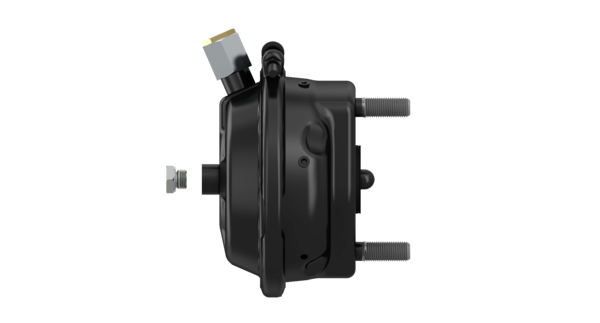

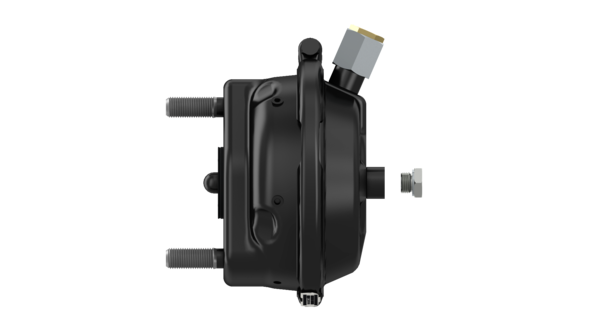

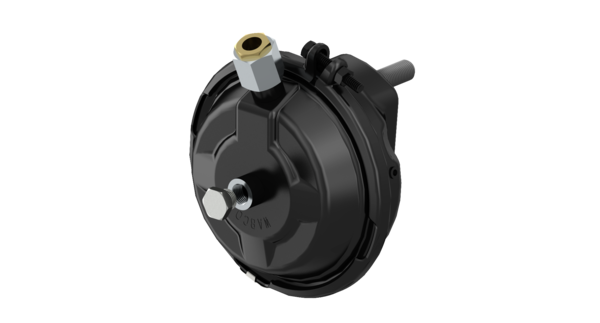

Brake Chamber (Disc brake)
Part Number: 4235060740
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 42.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 7.1678 |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2 bar |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Return-spring force | 220 N |
| Stroke | 64.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 120.0 mm |
| Type | 24 |
| Type of operation | Disc |
| Version | Without boot |
| GTIN | 04057875166641 |
| Size (mm x mm x mm) | 185 x 189 x 205 |
| UPC | 193133480860 |
| Weight (kg) | 3.6 |
| Weight (lb) | 7.9366 |
