Description

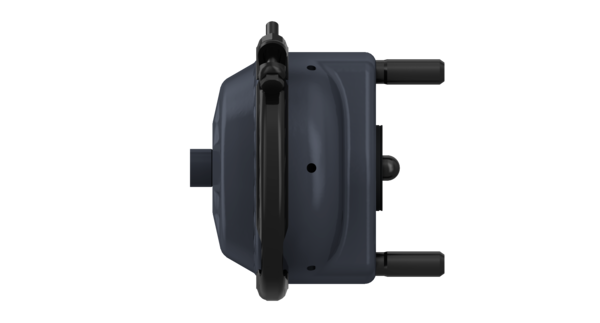

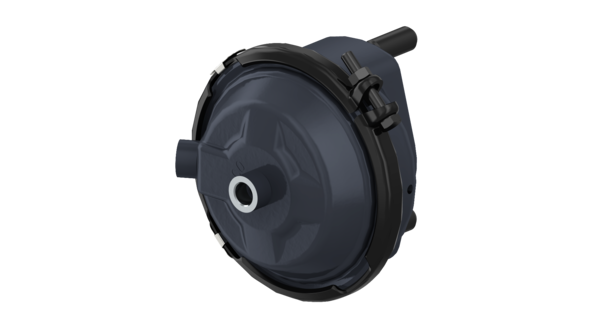

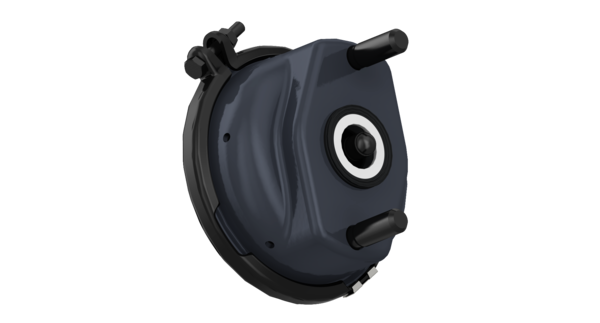

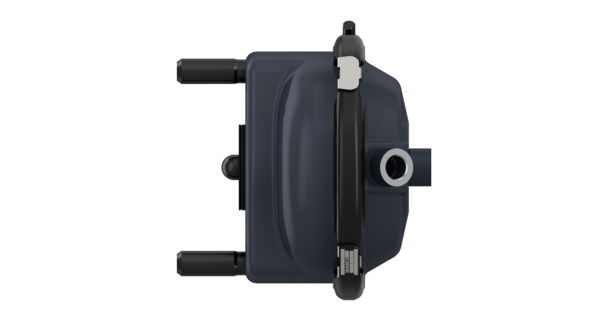

Brake Chamber (Disc brake)
Part Number: 4235140100
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 4.492 |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2 bar |
| Output force | 5100 N |
| Output force m | 5100 N |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Return-spring force | 220 N |
| Stroke | 57.0 mm |
| Technical specification | OE specification |
| Temperature range | -45°C to +80°C |
| Total length | 117.0 mm |
| Type | 14 |
| Type of operation | Disc |
| Version | Without boot |
| GTIN | 04057875167716 |
| Size (mm x mm x mm) | 165 x 165 x 165 |
| UPC | 193133251170 |
| Weight (kg) | 2.847 |
| Weight (lb) | 6.277 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERITOR | 68323847 |
| VOLVO | 20376548 |
| VOLVO | 20376399 |
| VOLVO | 2037654 |
