Description

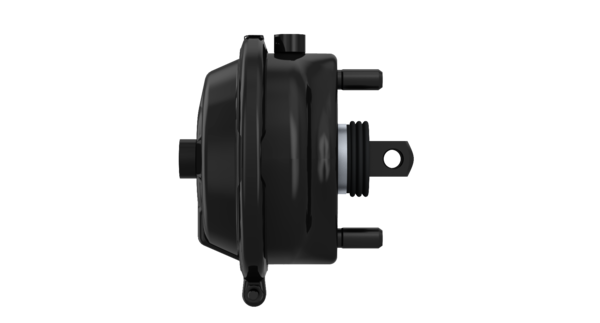

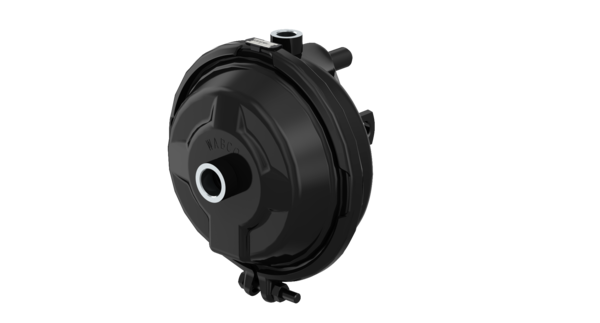

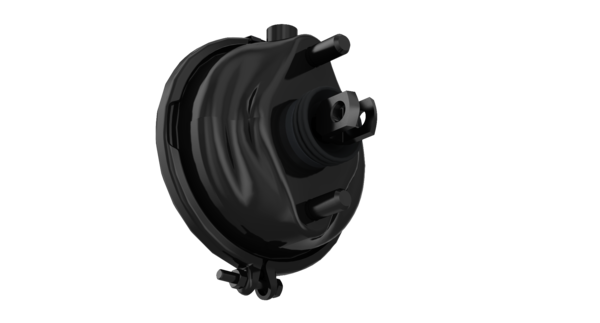

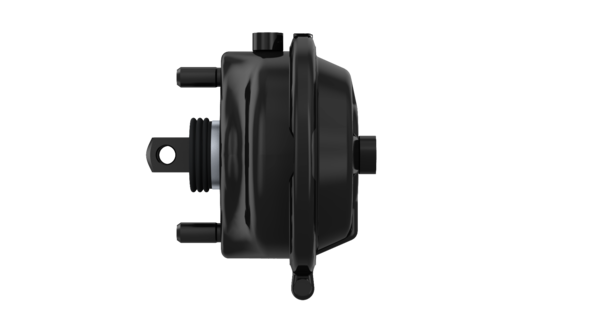

Brake Chamber (Cam Brakes)
Part Number: 4231060050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 34.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 5.2566 |
| Clevis pins | 14 mm |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2 bar |
| Output force | 9000 N |
| Output force m | 9000 N |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Push-rod length | 40 mm |
| Return-spring force | 250 N |
| Stroke | 57.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 120.0 mm |
| Type | 24 |
| Type of operation | Cam |
| Version | With Boot |
| Yoke | Ø14H11 |
| GTIN | 04057875163268 |
| Size (mm x mm x mm) | 192 x 162 x 169 |
| UPC | 193133477891 |
| Weight (kg) | 3.478 |
| Weight (lb) | 7.6677 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81511016516 |
| NEOPLAN | 81511016516 |
