Description

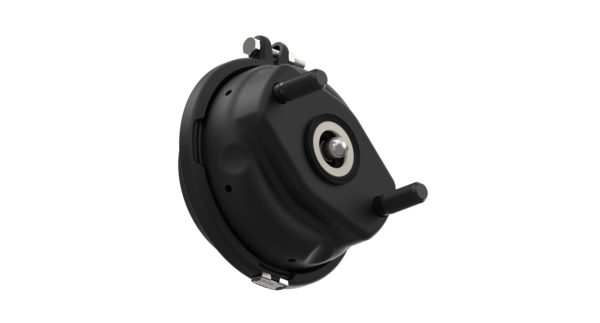

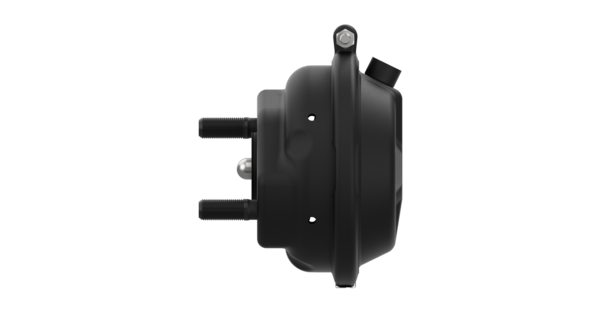

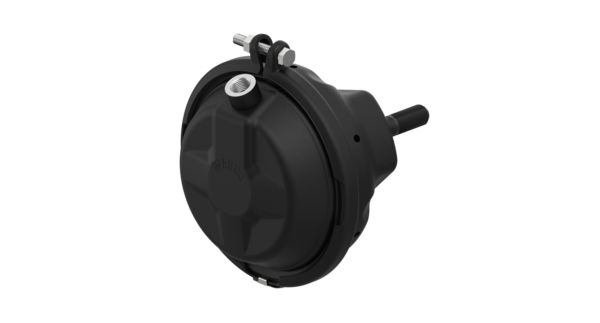

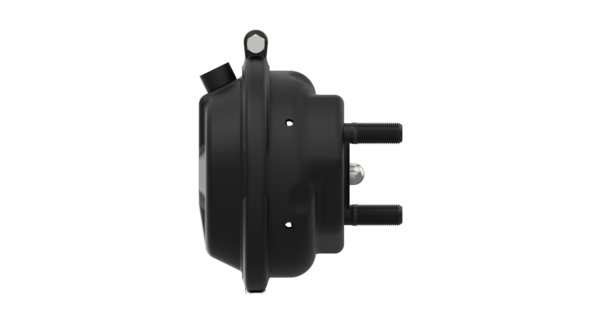

Brake Chamber
Part Number: 4235051210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 5.4 |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2 bar |
| Output force | 1050 N |
| Output force 1 | 7600 N |
| Output force 2 | 10000 N |
| Output force m | 1050 N |
| Port threads | M16 x 1.5 |
| Ports | 26° |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Return-spring force | 240 N |
| Stroke | 65.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 107.0 mm |
| Type | 20 |
| Type of operation | Disc |
| Version | Without boot |
| Yoke | Without |
| GTIN | 04057875165804 |
| Size (mm x mm x mm) | 150 x 200 x 180 |
| UPC | 193133480785 |
| Weight (kg) | 3.226 |
| Weight (lb) | 7.112 |
