Description

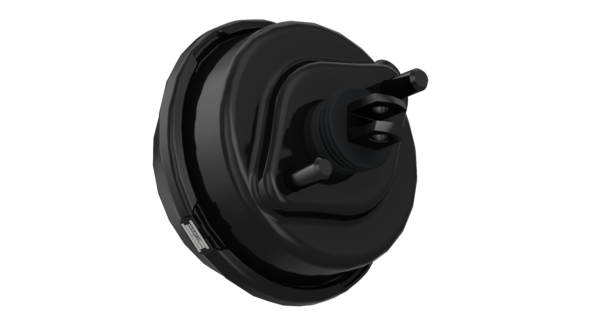

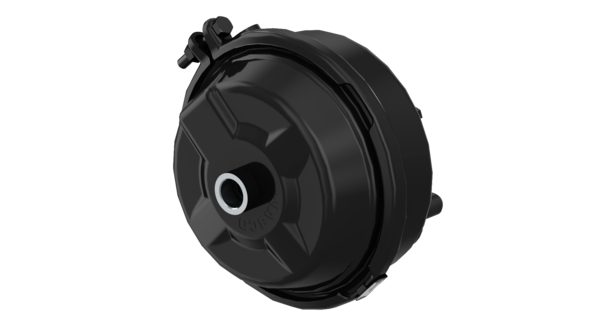

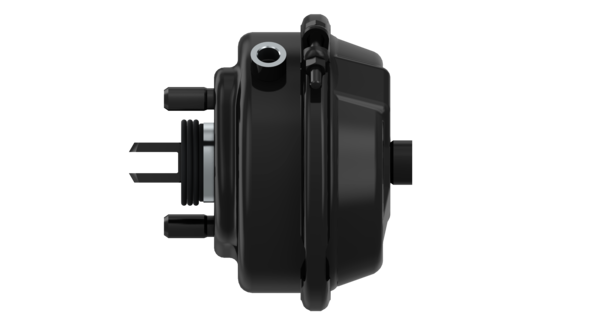

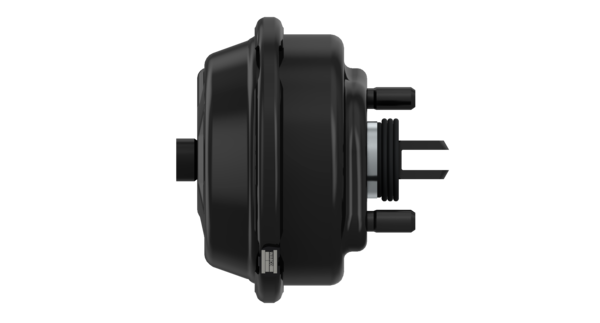

Brake Chamber
Part Number: 4231090600
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 33.5 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 7.7805 |
| Clevis pins | 14 mm |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2 bar |
| Output force | 11050 N |
| Output force 1 | 11800 N |
| Output force 2 | 13900 N |
| Output force m | 11050 N |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Push-rod length | 65 mm |
| Push-rod thread | M22 x 1.5 |
| Return-spring force | 245 N |
| Stroke | 72 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 133.0 mm |
| Type | 27 |
| Type of operation | Cam |
| Version | With Boot |
| Yoke | With |
| GTIN | 04057875164999 |
| Size (mm x mm x mm) | 195 x 210 x 190 |
| UPC | 193133460992 |
| Weight (kg) | 4.46 |
| Weight (lb) | 9.8326 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 82511016029 |
| NEOPLAN | 82511016029 |
