Description

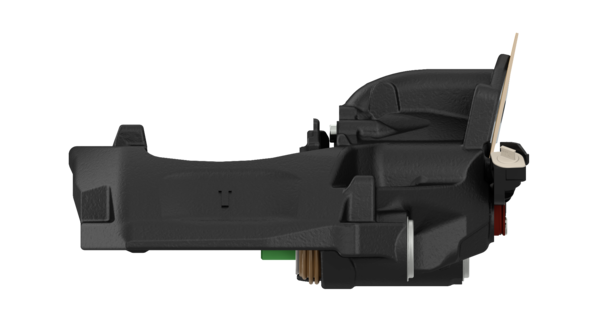

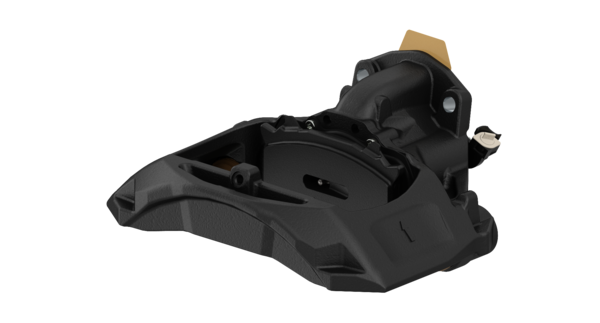

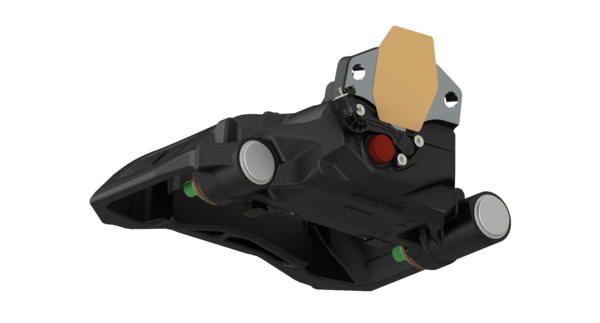

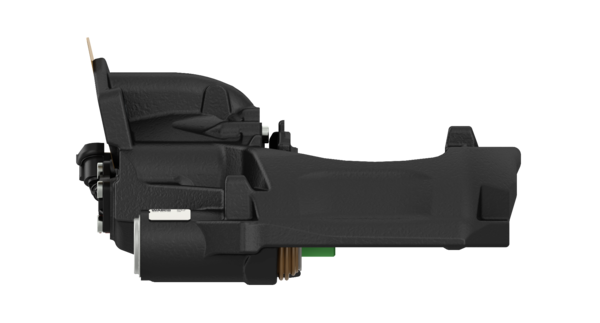

Brake Caliper REMAN MAXX 22L DAG
Part Number: 640322949R
Technical Specifications
| Brand | ZF REMAN – WABCO |
| Part type | Remanufactured |
| Brake disc | 45 mm |
| Calculated Volume (dm³) | 82.08 |
| Comments | Without pads and carrier |
| Diameter | 430.0 mm |
| Important information | Learn more about the core return process (Click here ) |
| Mounting | 6x M18 x 1.5 |
| Opposite | 640322950R |
| Product category | Device |
| Stroke | 21.0 mm |
| Technical specification | OE specification |
| Type | MAXX 22L |
| Version | Without pads and carrier |
| Voltage | 1.01 to 1.4 V |
| GTIN | 04057885403095 |
| Size (mm x mm x mm) | 380 x 400 x 540 |
| UPC | 193133509950 |
| Weight (kg) | 26.8 |
| Weight (lb) | 59.08 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAIMLER | A9604201302 |
| DAIMLER | A0054203983 |
