Description

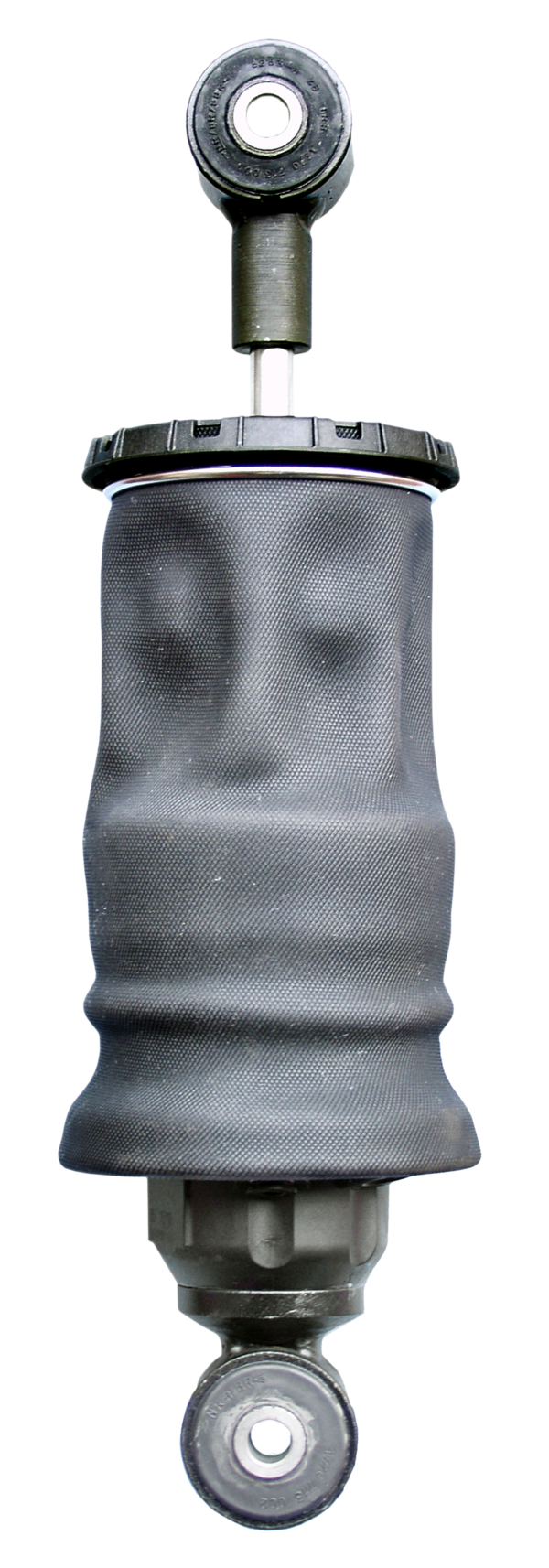

Bellows Servo Valve (CALM)
Part Number: 9640060200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Platform vehicle: MAN TGA / TGX (front) |
| Calculated Volume (dm³) | 6.0764 |
| Diameter | 140.0 mm |
| Length | 273 mm |
| Max. operating pressure | 25.0 bar |
| Port thread 1 | Quick Connection Ø 6 mm |
| Port thread 2.1 | Quick Connection Ø 6 mm |
| Product category | Device |
| Stroke | 79.0 mm |
| Technical specification | OE specification |
| Temperature range | -35°C to +80°C |
| Type | CALM II |
| GTIN | 04057875298670 |
| Size (mm x mm x mm) | 422 x 121 x 119 |
| UPC | 193133372042 |
| Weight (kg) | 3.02 |
| Weight (lb) | 6.65795 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81417226071 |
