Description

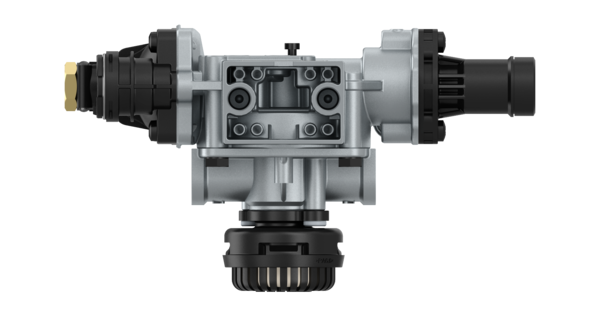

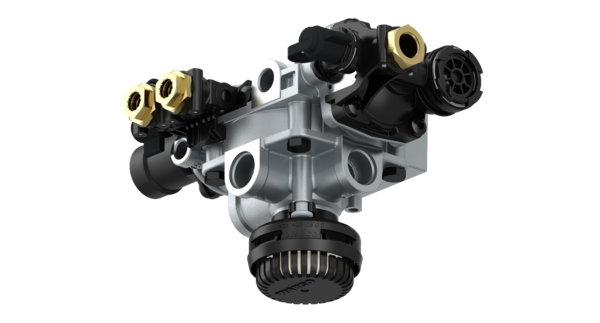

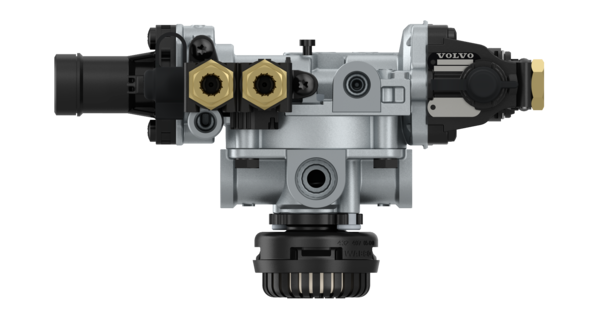

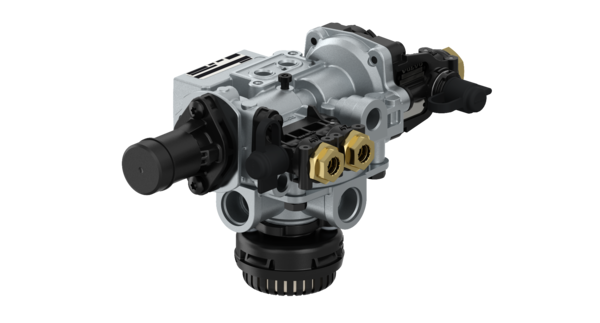

Automatic Load Sensing Valve
Part Number: 4757210050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.6 bar |
| Calculated Volume (dm³) | 6.32 |
| Control pressure | 10 bar |
| Distance between bolts | 26 mm |
| Exhaust | With silencer |
| Inlet pressure | 10.2 bar |
| Max. operating pressure | 13.0 bar |
| Mounting | 2x M14 x 1.5 |
| Operational range | 0.5 to 4.5 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 388 |
| Port thread 41 | VOSS 232-NG 8 |
| Port thread 42 | VOSS 232-NG 8 |
| Product category | Device |
| Range of adjustment | 0.5 to 4.5 bar |
| Regulating ratio | 1:5.3 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 04057875226338 |
| Size (mm x mm x mm) | 270 x 154 x 152 |
| UPC | 193133315575 |
| Weight (kg) | 1.624 |
| Weight (lb) | 3.5803 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0044311612 |
| MERCEDES-BENZ | 0044311612 |
| MERCEDES-BENZ | 0054312512 |
| MERCEDES-BENZ | 0044312512 |
| MERCEDES-BENZ | 00543125 |
| MERCEDES-BENZ | A0054312512 |
| MERCEDES-BENZ | A0044311612 |
