Description

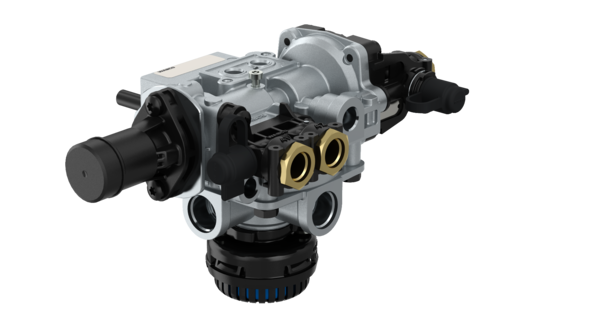

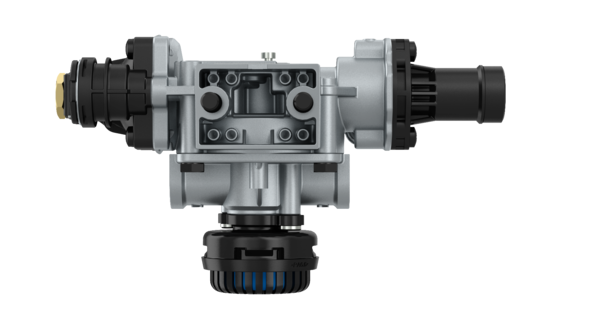

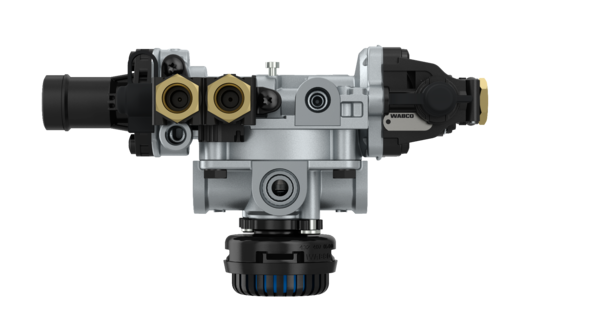

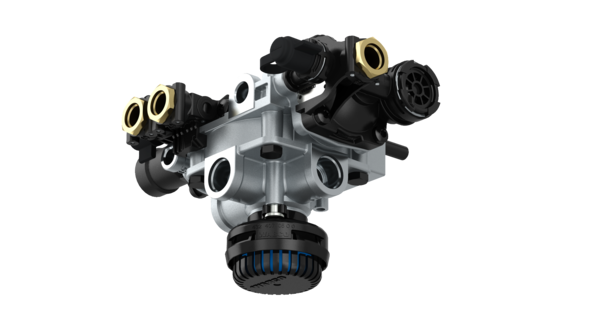

Automatic Load Sensing Valve
Part Number: 4757210030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 2 bar |
| Calculated Volume (dm³) | 7.0087 |
| Control pressure | 10 bar |
| Distance between bolts | 26 mm |
| Exhaust | With silencer |
| Inlet pressure | 10.0 bar |
| Max. operating pressure | 13.0 bar |
| Mounting | 2x M10 |
| Operational range | 0.3 to 4.65 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 388 |
| Port thread 41 | M16 x 1.5 JED-388 |
| Port thread 42 | M16 x 1.5 JED-388 |
| Product category | Device |
| Range of adjustment | 0.3 to 4.65 bar |
| Regulating ratio | 1:5.3 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 7895851051232 |
| Size (mm x mm x mm) | 265 x 174 x 152 |
| UPC | 193133315605 |
| Weight (kg) | 1.627 |
| Weight (lb) | 3.5869 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1387214 |
| LEYLAND DAF | 1387214 |
| SCANIA | 1935115 |
