Description

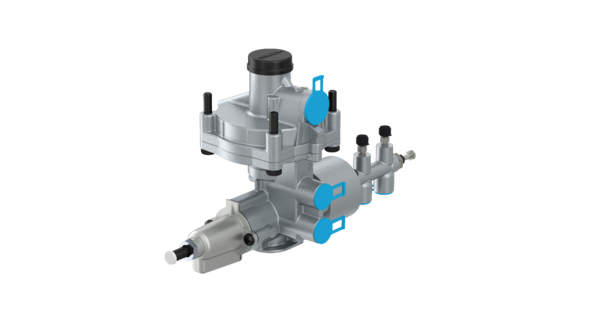

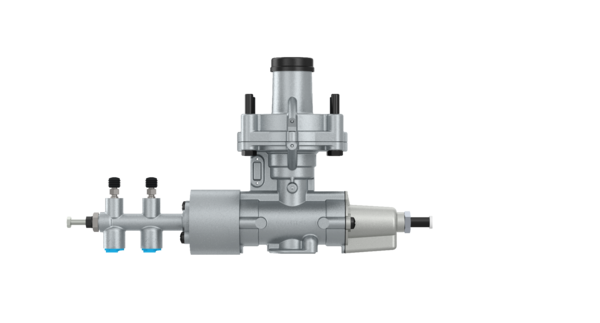

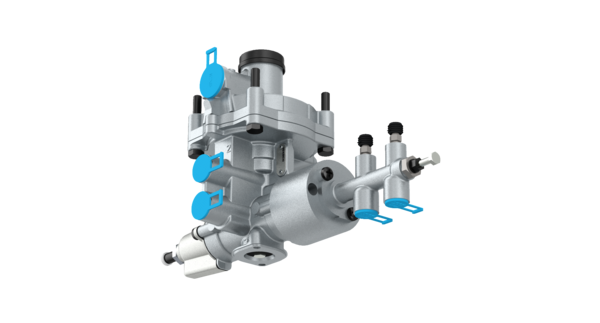

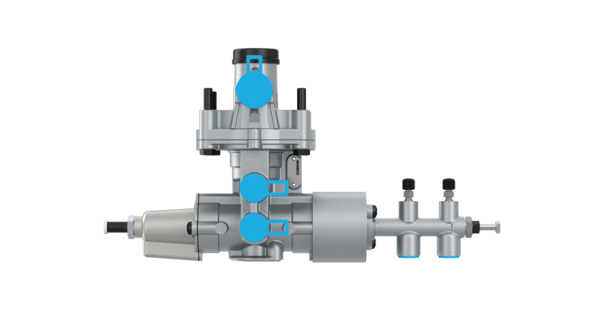

Automatic Load Sensing Valve
Part Number: 4757146000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.4 bar |
| Calculated Volume (dm³) | 10.3194 |
| Comments | Static valve for trailers: Mineral oil control medium |
| Control pressure | 160 bar |
| Distance between bolts | 84×84 mm |
| Important information | If you need to calibrate this Load Sensing Valve, please use our LSV-Calculator (Click here ) |
| Inlet pressure | 10.0 bar |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 2x M16 x 1.5 |
| Port thread 4 | M22 x 1.5 |
| Port thread 41 | M12 x 1.5 |
| Port thread 42 | M12 x 1.5 |
| Product category | Device |
| Regulating range | 20 to 140 bar |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Hydraulic |
| Type of operation | Dynamic |
| GTIN | 04057875226031 |
| Size (mm x mm x mm) | 360 x 195 x 147 |
| UPC | 193133315438 |
| Weight (kg) | 2.008 |
| Weight (lb) | 4.4269 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506231 |
| DOLL | 7076399 |
| FAUN | 99707007541 |
| FAYMONVILLE | 51301 |
| GOLDHOFER | 167032 |
| KRONE | 9455410 |
| KRONE | 09455410 |
| LANGENDORF | 1111733 |
| MAN | 82521616032 |
| NOOTEBOOM | 308057 |
| ORTHAUS | 495166 |
| PACCAR | 1506231 |
| SCANIA | 1935110 |
