Description

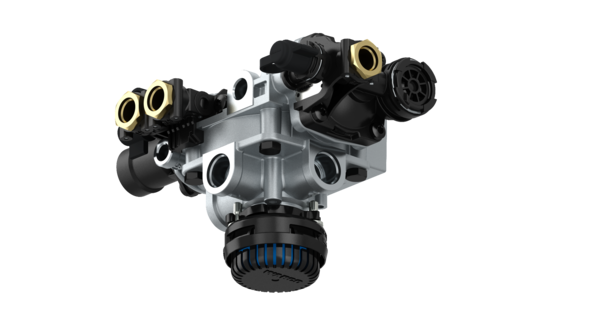

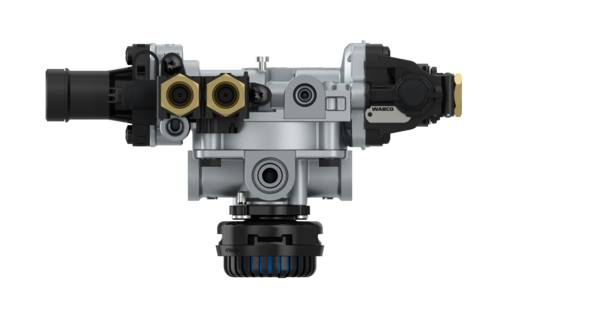

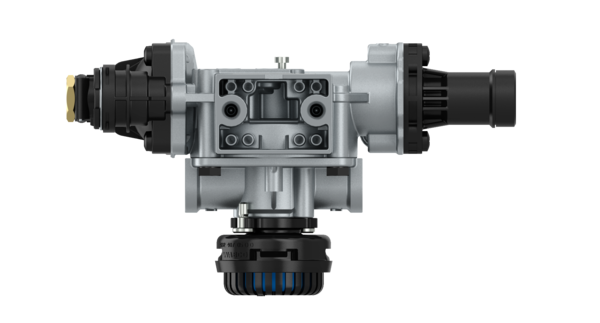

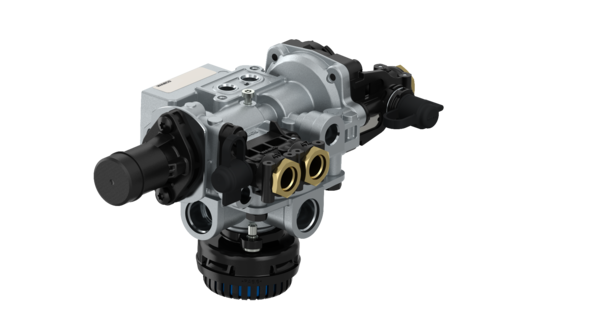

Automatic Load Sensing Valve
Part Number: 4757210070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.6 bar |
| Calculated Volume (dm³) | 5.876 |
| Control pressure | 10 bar |
| Distance between bolts | 26 mm |
| Exhaust | With silencer |
| Inlet pressure | 10.0 bar |
| Max. operating pressure | 13.0 bar |
| Mounting | 2x M10 |
| Operational range | 0.55 to 3.1 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 388 |
| Port thread 41 | M16 x 1.5 JED-388 |
| Port thread 42 | M16 x 1.5 JED-388 |
| Product category | Device |
| Range of adjustment | 0.55 to 3.1 bar |
| Regulating ratio | 1:5.3 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 04057875226345 |
| Size (mm x mm x mm) | 147 x 263 x 152 |
| UPC | 193133315643 |
| Weight (kg) | 1.573 |
| Weight (lb) | 3.4679 |
OEM Cross References
| Brand | Reference No |
|---|---|
| LEYLAND DAF | ABRA929 |
| PACCAR | 1402219 |
