Description

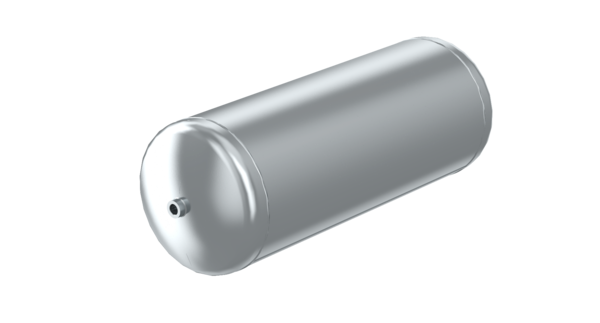

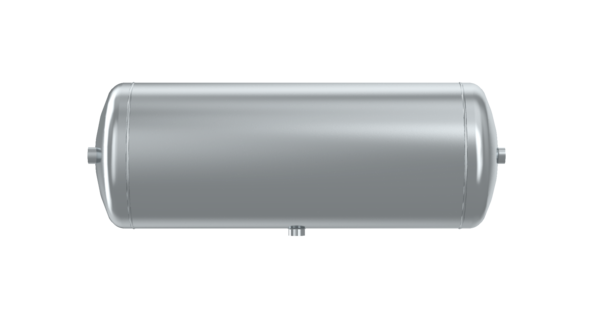

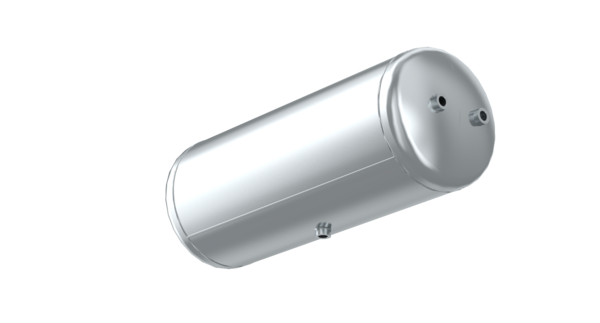

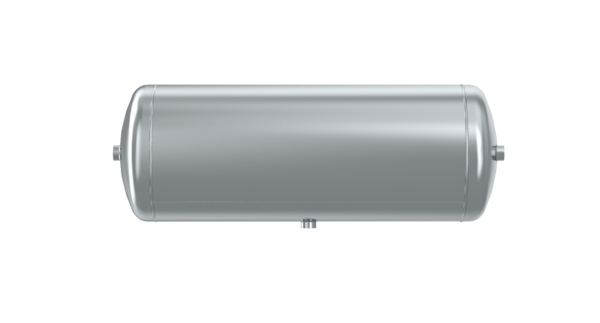

Air Reservoir 60 L Aluminum
Part Number: 9509109010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Aluminium |
| Calculated Volume (dm³) | 91.16 |
| Capacity | 60 L |
| Design | CE |
| Diameter | 310.0 mm |
| Length | 902 mm |
| Max. operating pressure | 11.0 bar |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -50°C to +100°C |
| GTIN | 04057885305146 |
| Size (mm x mm x mm) | 902 x 310 x 326 |
| UPC | 193133509264 |
| Weight (kg) | 8.365 |
| Weight (lb) | 18.44 |
