Description

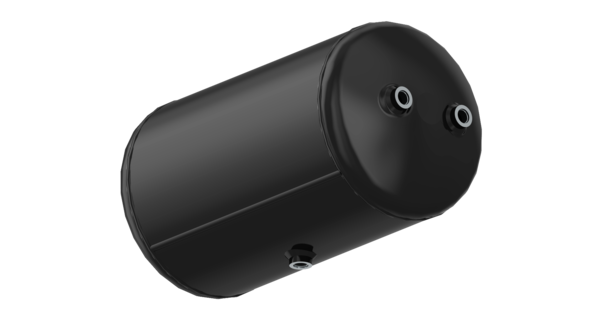

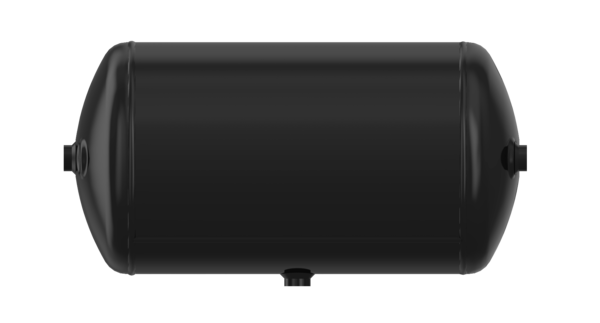

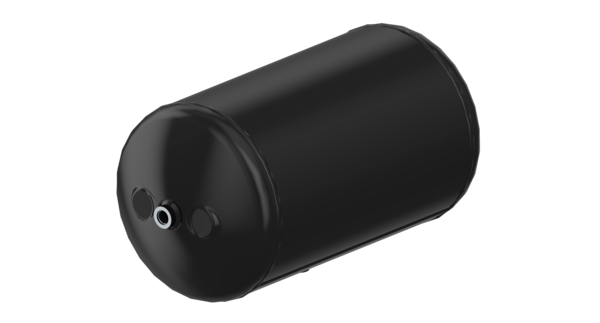

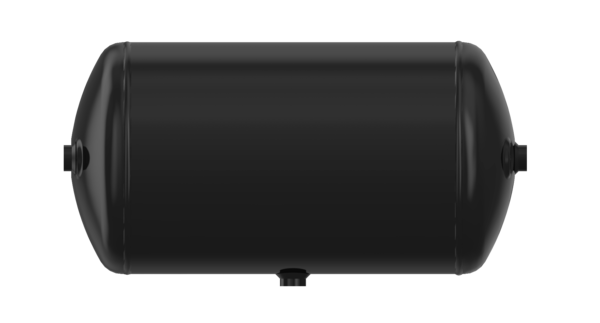

Air Reservoir 40 L Steel
Part Number: 9509110010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Steel |
| Calculated Volume (dm³) | 62.46 |
| Capacity | 40 L |
| Color | Black |
| Design | CE |
| Diameter | 310.0 mm |
| Length | 618 mm |
| Max. operating pressure | 12.5 bar |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -50°C to +100°C |
| GTIN | 04057885305085 |
| Size (mm x mm x mm) | 618 x 310 x 326 |
| UPC | 193133525493 |
| Weight (kg) | 11 |
| Weight (lb) | 24.25 |
