Description

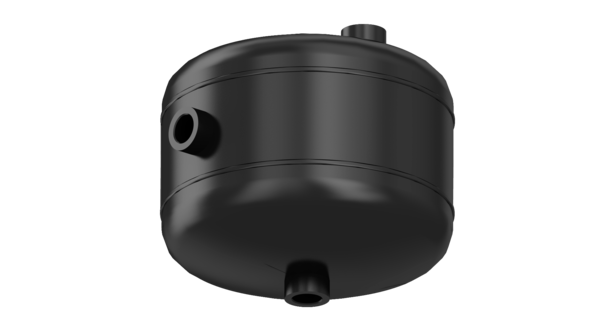

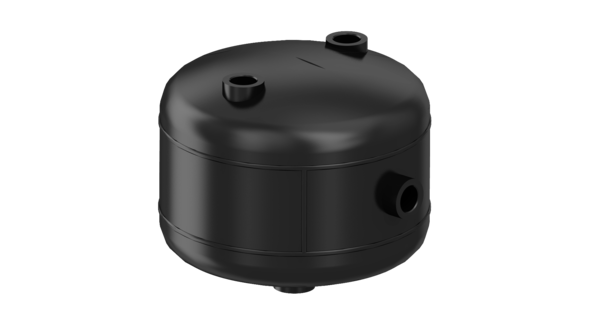

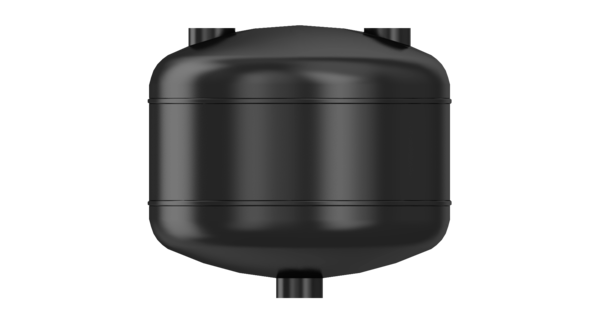

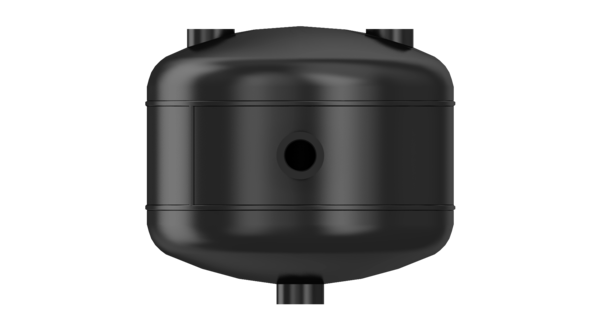

Air Reservoir 4.5 L Steel
Part Number: 9504050010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Steel |
| Calculated Volume (dm³) | 11.4215 |
| Capacity | 4.5 L |
| Color | Black/Black |
| Design | CE |
| Diameter | 206.0 mm |
| Length | 185 mm |
| Max. operating pressure | 15.5 bar |
| Port threads | M22 x 1.5 |
| Ports | 4 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -50°C to +100°C |
| GTIN | 04057875293736 |
| Size (mm x mm x mm) | 236 x 222 x 218 |
| UPC | 193133365747 |
| Weight (kg) | 2.8 |
| Weight (lb) | 6.17294 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | 8285433000 |
| HENDRICKSON | 9504050010 |
| LIEBHERR | 502922101 |
| LIEBHERR | 5029871 |
| MAN | 84514016007 |
| NEOPLAN | 1102733544127 |
| SCANIA | 1935521 |
| TEREX | 32423740 |
